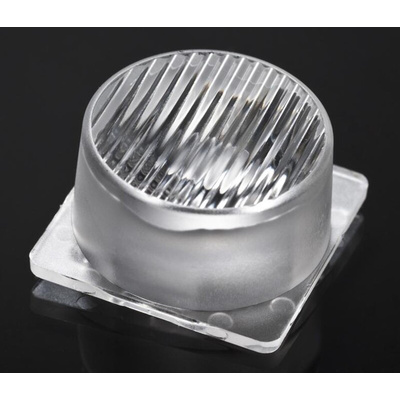

Ledil CA13726_VERONICA-SQ-O, Veronica Series LED Lens, Square Beam, Светодиодная линза

8922832
Номер производителя: CA13726_VERONICA-SQ-OПроизводитель: Ledil
Цена за шт. (норма упаковки 3 шт)
374.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

LEDiL VERONICA Series LED Lenses

The VERONICA series from LEDil, are a family of round LED lenses with a square or round base. They are TIR lenses for installations with potting resin. VERONICA lenses act as an optical element, structural holder and sealing surface. Designed for indoor and outdoor applications the VERONICA lenses can be used for IP ratings of up to IPx8.
This range is designed for use with a single LED. They offer a range of beam angles from a spot to wide, and even an oval beam option. VERONICA lenses direct the light from an LED light source through the lens to achieve the desired beam emission type with a uniform output.
VERONICA-SQ lenses have an adhesive tape for easy installation and a slightly smaller footprint than the standard VERONICA lenses.
Made using an optical grade PMMA, the VERONICA lenses offer a high UV and temperature resistance. VERONICA lenses have been designed and optimised for use with a variety of LEDs. Due to the rapidly changing nature of LED products customers are strongly advised to consult the latest manufacturer data for compatible LEDs.

Note

The viewing angle produced (the full angle measured at the half peak luminous intensity value) will vary depending on the chip size, colour and position of the LED.

LEDiL Single LED Lenses

Техническая спецификация
pdfDatasheet
pdfLens & Reflector Buyer's Guide
Высота:
12.2мм
Длина:
22.5мм
Для использования с:
Cree XB-H, Cree XM-L, Cree XM-L2, Cree XP-E2, Cree XP-G2, Lumileds LUXEON M, Lumileds LUXEON MZ, Lumileds LUXEON Rebel, Lumileds LUXEON Rebel ES, Lumileds LUXEON T, Lumileds LUXEON TX, Nichia NVSxx19B, Nichia NVSxx19C, OSRAM OSLON Square EC, Samsung LH351
Количество светодиодов на объектив:
1
Комплект поставки:
Линза
Метод нанесения:
Pin, Tape
Размеры:
22.5 x 22.5 x 12.2мм
Серия:
Veronica
Структура выбросов:
Квадратная
Тип продукта:
LED Lens
Ширина:
22.5мм
