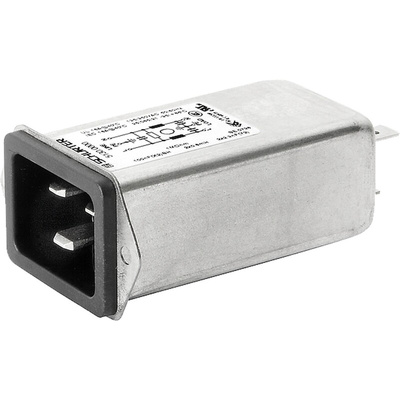

Schurter 16A, 250 V ac Male Screw Filtered IEC Connector 5130.0000.21, Quick Connect, Фильтр

V-Lock Series IEC Inlet/Outlet Connectors and Filters

Schurter V-Lock series panel mounted connectors, offered in: J and C20 IEC connector types, with or without filtering or switch. The V-lock system is designed to prevent accidental disconnection, the yellow coloured catch mechanism found on the cable assembly is easily released from its inlet connection by depressing the built in lever, eliminating the requirements for additional hardware, reducing costs, and installation time. Applications for these RoHS complaint V-Lock panel mount connectors include portable medical devices, laboratory equipment, telecommunication and datacom equipment, and audio equipment. Suitable for appliances with protection class I.

C19 and I type IEC connection
6.3x0.8mm quick connect terminals
RoHS compliant
Time saving installation
Up to 200 N retention force when mated with V-Lock cable assembly
Temperature range -25 to +70° C

Note

Also accepts standard C19, and I type IEC connectors where applicable.

Standards

IEC 61140, IEC 60320

Approvals

UL, CCC, VDE

Schurter V-Lock Series

C20 Appliance Inlet Filter 16A, V-Lock
