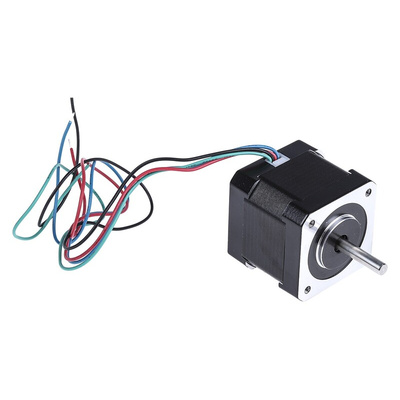

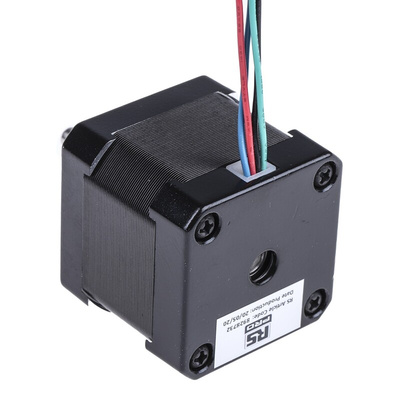

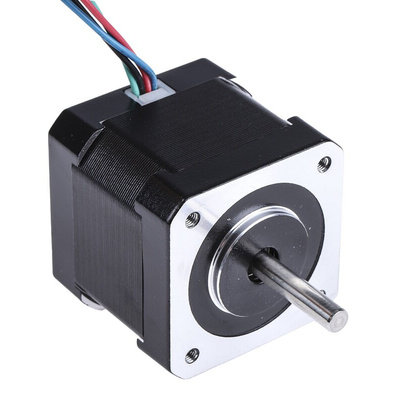

RS PRO Hybrid, Permanent Magnet Stepper Motor, 0.36Nm Torque, 2.8 V, 1.8°, 42.3 x 42.3mm Frame, 5mm Shaft, Шаговый двигатель

RS PRO Hybrid Stepper Motor 1.8°, 0.36 Nm, 2.8 V, 1.68 A, 4 Wires

Hybrid stepper motors are brushless assembles typically used to divide a full motor rotation into several smaller, equal steps. This delivers greater precision and higher efficiency at lower speeds and lets you make accurate and controlled movements with electric devices. A hybrid stepper uses a combination of permanent magnet and variable reluctance motor technology to make the most of power in small devices.

The motor is RoHS (Restriction of Hazardous Substances) compliant, which means it doesn't contain harmful levels of any hazardous materials. Like all RS PRO products, it's been thoroughly tested to give you confidence in its quality.

Commonly found in lasers, these motors can form part of larger, complex devices such as linear actuators and rotation stages. You'll find them around the home in everything from camera lenses to DVD players.

Features and Benefits

• Step angle of 1.8°
• Holding torque of 0.36 Nm

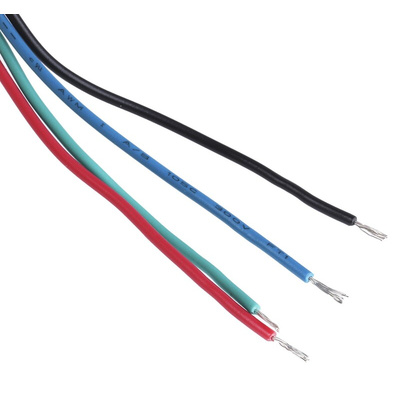

• Four-wire bipolar winding
• Voltage rating of 2.8 V
• Frame size of 42.3 x 42.3 mm
• Hybrid stepper motor type with permanent magnet
• Current rating of 1.68 A
• Depth of 62 mm
• Resistance per phase of 1.65 Ω
• RoHS (Restriction of Hazardous Substances) compliant product

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
