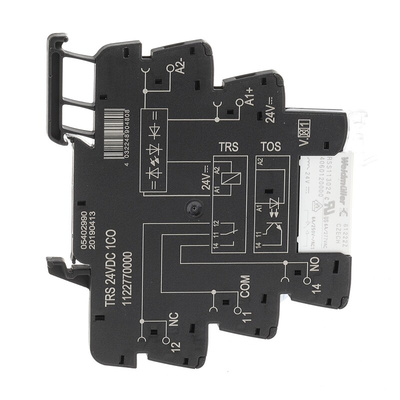

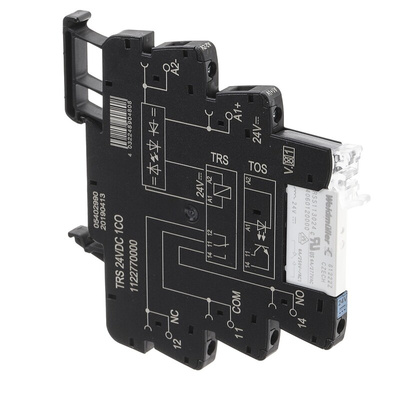

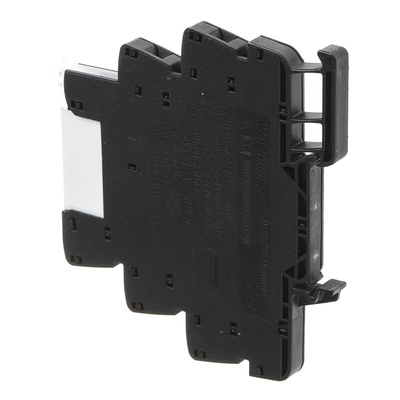

1122770000, Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24V Coil, SPDT, 1-Pole, 6A Load

Weidmuller Interface Relay, 90mm Height, 6A Continuous Current Output - TERMSERIES Series - 1122770000

For reliable signalling in your automated system, choose this single-contact interface relay from Weidmuller. It's designed for use with components that have different electrical specifications that prevent them from being directly connected. Galvanic isolation inside the unit helps to minimise interference for efficient and stable transmission. The silver-nickel contact material is highly conductive and resistant to corrosion for a reliable connection.

Features & Benefits

• Protection against reverse polarity to minimise the risk of electrical damage
• Compact dimensions of 90 (H) x 6.4 (W) x 88mm (D) to add minimal bulk to your setup
• Light weight of 33g to avoid placing excess strain on your mounting surface
• IP20 rating means it's finger-safe and protected against objects larger than 12mm in size

Applications

• Industrial automation and control networks
• Medical equipment
• Radio-electronic systems

What's the power rating of this unit?

The power rating of this unit is 240mW, making it an energy-efficient choice.

Can I use this relay in demanding conditions?

Yes, this interface relay has a wide operating temperature range between -40°C and +60°C for use in harsh environments.

1122770000 Data Sheet

Instruction Sheet - 1122770000

Catalogue - Relays And Solid-State Relays
