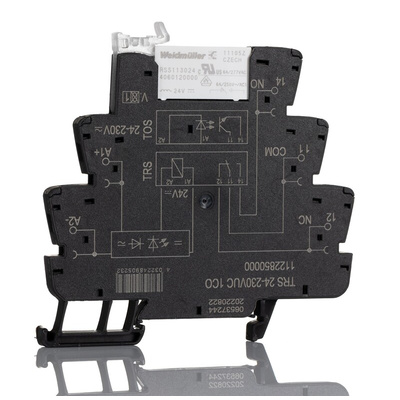

1122850000, Weidmuller TRS Series Interface Relay, DIN Rail Mount, 24 → 230V ac/dc Coil, SPDT, 1-Pole, 6A Load

Weidmuller Interface Relay, 1 Pole, 26 to 14AWG Wire Size Range - TRS TERMSERIES - 1122850000

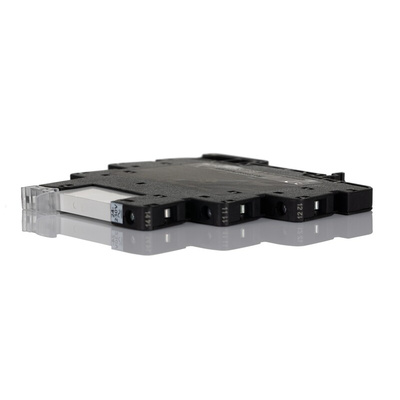

For interference-free signal transmission, turn to this interface relay from Weidmuller. Its silver alloy contacts ensure strong electrical conductivity and resistance to corrosion, so you can be sure you get speedy results. Compact dimensions of 90 (L) x 88 (H) x 6.4mm (D) mean it slots neatly into setups with limited space. A turn-on delay of less than 22ms minimises downtime to boost productivity. The component clips onto a DIN rail in a snap for hassle-free installation.

Features and Benefits

• Broad operating temperature range between -40°C and +60°C for use in harsh environments
• Screw terminals provide a secure connection without the need for special tools
• Wide input voltage range between 24 and 230V AC/DC for broad compatibility
• Light weight of 38g means it places minimal strain on your equipment

Applications

• Industrial automation
• Medical equipment
• HVAC systems

How long will this interface relay last?

IP20 rated protection
CE certified
UL approved
EAC certified
cULus certified
47053-12
EN 50178
EN 55011
EN 61000-6-1
EN 61000-6-2
EN 61000-6-4

It has a mechanical service life of five million switching cycles, so you can trust it to be with you for the long haul.

1122850000 Data Sheet
