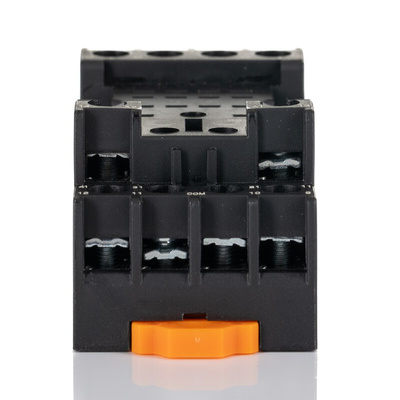

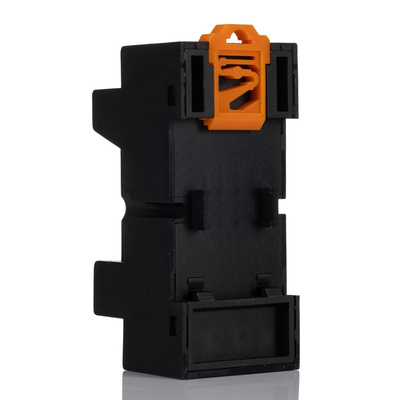

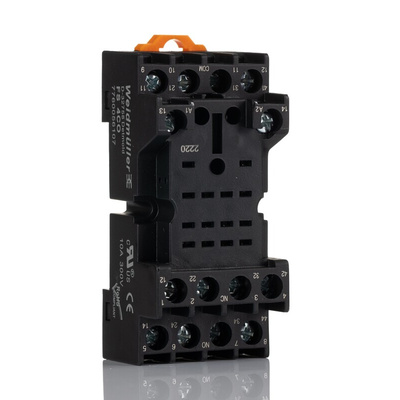

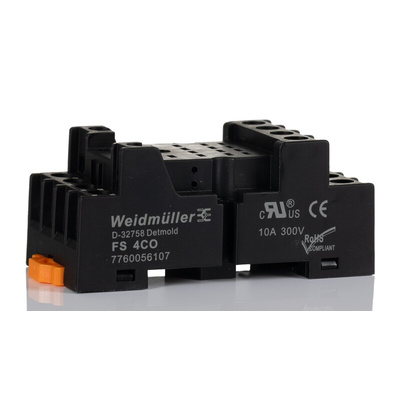

7760056107, Weidmuller D-SERIES 4 Pin 250V ac Panel Mount Relay Socket

Weidmuller Relay Socket, 4PDT Contact Configuration, 70mm Height- D Series - 7760056107

Need a reliable way to mount a relay? Count on this relay socket from Weidmuller to get the job done. You can simply wire this socket to your circuit and plug in your relay for installation that's easy as pie. This also makes it a breeze to remove and replace your relay as needed. It has a rated impulse withstand voltage of 4kV, so it stands up to powerful surges. Screw connections mean it's a cinch to securely connect your wires using just a simple screwdriver.

Features & Benefits

• Performs reliably in harsh environments, thanks to a broad operating temperature range of -40°C to +70°C
• IP10 rating means it's touch-safe and protected against objects larger than 50mm in size
• Compact dimensions of 71 (H) x 31 (W) x 29.5mm (D) to maximise space in your setup

Applications

• Manufacturing industry
• Automotive repair
• Telecommunications equipment

What wire sizes does this relay socket accommodate?

For versatility, it accepts solid and finely stranded wires ranging in size from 0.5 to 2.5mm². You can also connect flexible wires and finely stranded wires with plastic collars and wire-end ferrules between 0.5 and 1.5mm² in size.
