1176020000, Weidmuller ACT20M Series Signal Conditioner

Weidmuller Signal Converter Module

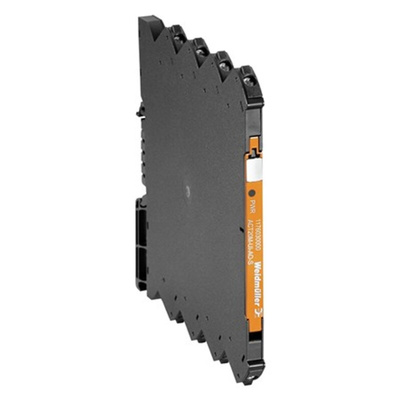

The Weidmuller signal converter module works as a configurable converter/supply
isolator and a signal multiplier. It has input analogue signal option with a current rating of 0-20mA/4-20mA and voltage rating of 0-10VDC. The galvanically isolated output current signal rating is 0-20mA/4-20mA/adjustable. It also performs the job of transmitting and isolating analogue DC current and voltage signals. The universal input and output parameters can be configured as required using the DIP switches. This device has many approvals and hence, it can be used for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This relay module has a small footprint that makes it ideal for applications where space saving is essential.

Features and Benefits

Input and output circuits and the voltage supply are completely electrically isolated
Input signal is converted into DC current or voltage
Capable of feeding power directly from the input loop signal to passive sensors
Number of outputs are two
Operating temperature ranging between -25°C and 70°C
Screw type terminal connection
Optional power supply via the DIN-rail bus
Configured using DIP switch
4 way isolation

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

CE certified
UL approved
EAC certified
cULus certified
ATEX Zone2
EN 61326-1
DIN EN 61010-1
DIN EN 60079
DIN EN 61326-1

1176020000 Data Sheet
