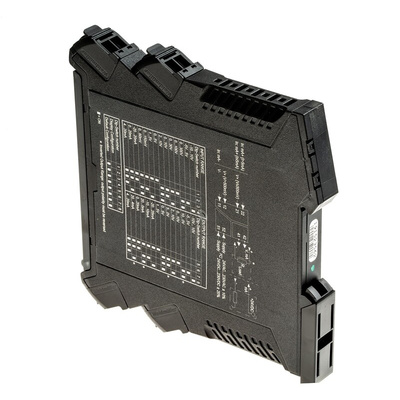

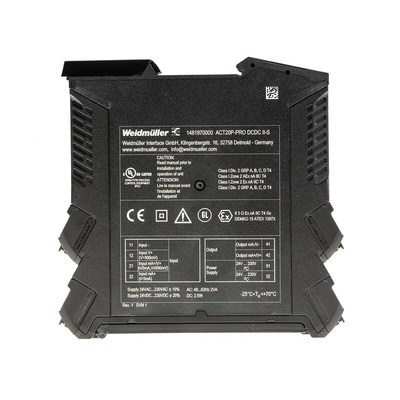

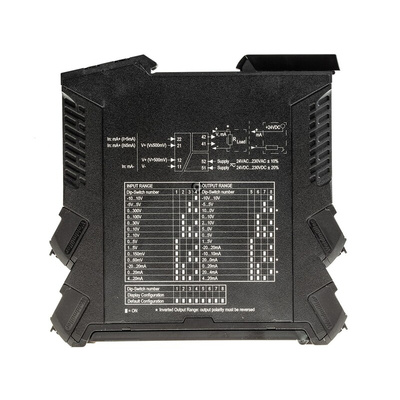

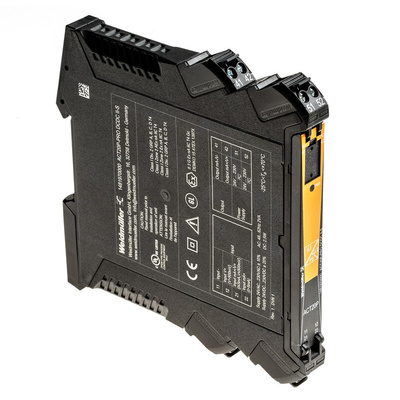

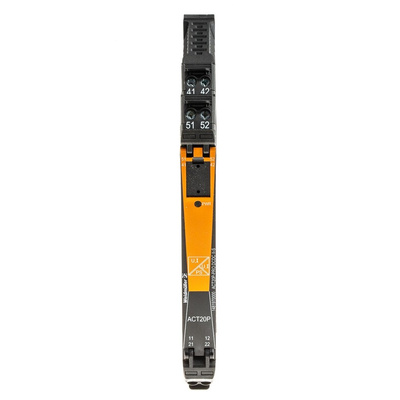

1481970000, Weidmüller ACT20P Series , 300V Interface Relay Module, Screw Terminal , DIN Rail

Weidmuller Signal Converter Module

The Weidmuller signal converter module works as a configurable converter/supply
isolator and a signal multiplier. It has input analogue signal options with the current rating of ± 0.1mA to ±100 mA(configurable) and input voltage rating of ±20 mV to ±300 V (configurable). The galvanically isolated output current signal rating is 0mA to ±20mA (adjustable). This relay performs the job of transmitting and isolating analogue DC current and voltage signals. The universal input and output parameters can be configured as required using the DIP switches. This device has many approvals and hence, it can be used for many applications around the world. It also a offers a high-density solution for smaller electrical cabinets and other industrial applications thus, optimising your panel installation. This relay module has a small footprint that makes it ideal for applications where space saving is essential.

Features and Benefits

Input, output circuits and the voltage supply are completely electrically isolated
input signal is converted into DC current or voltage
Operating status display on the front panel LED
Active and passive signal output
Operating temperature ranging between -40°C and 85°C
Screw type terminal connection
Din rail type mount
Precise and highly functional signal converters
Release levers simplify handling

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

CE certified
UL approved
EAC certified
cULus certified
EN 60079-0
EN 60079-15
EN 61010-1:2011
EN 61140
EN 61326-1
UL 61010-1
SN29500
