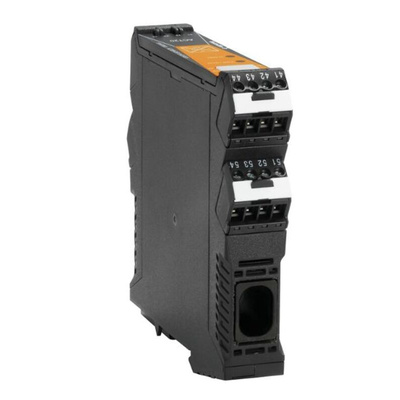

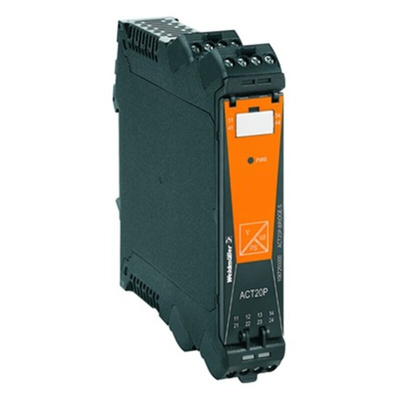

1510540000, Weidmuller ACT20P Series Signal Conditioner, Current Input, 16.8 → 31.2V Supply

Weidmuller Signal Conditioner, Analogue Output Type, Screw Connection - ACT20P Series - 1510540000

To make signals readable to conventional instruments, wire up this signal conditioner from Weidmuller. It converts inputs from a sensing device into adjustable current outputs between -20 and 20mA and voltage outputs between -10 and 10V. You can use it with AC or DC input types to cover all your bases. Harsh work areas are no match for this hardy product, as it performs reliably in temperatures ranging from -25°C to +60°C.

Features & Benefits

• Light weight of 158g to place minimal strain on your equipment
• Supply voltage range between 16.8 and 31.2V for use in low-power systems
• Fits into tight spaces, thanks to its compact dimensions of 119.2 (H) x 22.5 (W) x 113.6mm (D)

Applications

• Machine control networks
• Digital data analysis
• Oil and gas refineries

How reliable is this product?

Its MTBF of 158 years means you can count on this product for the long haul.

What conductor sizes is this unit compatible with?

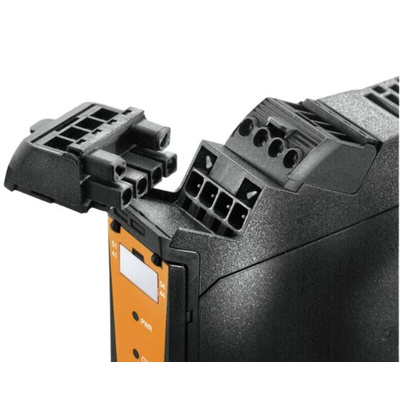

For flexibility, you can wire this product with conductors ranging in size between 26 and 12AWG.
