3491L1P6I1, Rosemount 3490 Series Level Controller - Wall Mount ATEX, 115 [arrow/] 230 V ac 1 Current, Voltage Input 1 x 4 - 20mA +, Контроллер уровня

8929766
Номер производителя: 3491L1P6I1Производитель: Rosemount
Цена за шт.
224496.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

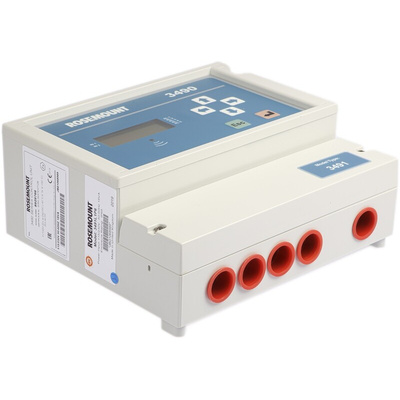

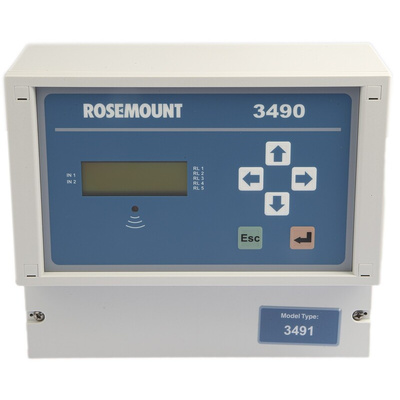

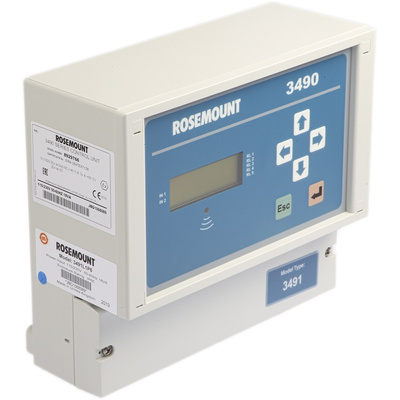

Rosemount Level Controller

The Rosemount 3490 series level controller is a single input and panel mount device. This control unit provides comprehensive control functionality for any compatible transmitter ranging between 4mA and 20 mA. It has a back-lit display that gives a clear visual indication of the measured value and status of all inputs and outputs. It requires 115/230VAC power supply. This controller has easy to understand menus and a programming wizard function make programming easy while password protection protects from accidental or unauthorised changes.

Features and Benefits

Standard control unit accepts input from one transmitter
Compatible with HART 5, 6 and 7 Transmitters
Five voltage-free SPDT relays for alarm and control duties
Supports two voltage-free contact closure inputs
Bright local display of measured value and input/output status
Pre-programmed tank shapes, flow algorithms and control routines simplify configuration.
20-point strapping table facility is provided for non-standard applications
Real-time clock for energy-saving routines, pump efficiency calculations and date/time stamping of data logging
Panel mount enclosure with 2-part cage clamp terminal blocks at the rear

Certifications

IP65 rated
EN61010-1
ATEX intrinsically safe approvals

Техническая спецификация
pdfDatasheet
pdfDatasheet
pdfDeclaration of Conformity
Вид монтажа:
Настенное крепление
Габаритная ширина:
185мм
Длина общая:
213мм
Количество входов:
1
Количество выходов:
1
Напряжение изоляции:
500В пост. тока
Напряжение питания:
115 В перем. тока, 230 В перем. тока
Номинал тока:
200 (Fuse) mA, 4 → 20 mA
Общая глубина:
84мм
Пробники:
230/115Vac selectable
Рабочая температура - максимальная:
+55°C
Рабочая температура - минимальная:
-40°C
Серия:
3490
Сертификация опасной зоны:
ATEX
Степень защиты IP:
IP65
Тип входа:
Ток, Напряжение
Тип выхода:
1 x 4 - 20мА + 5 x Релейные выходы
