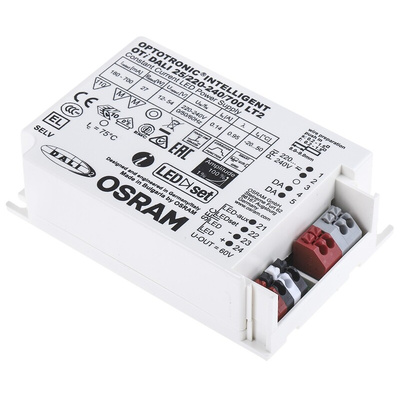

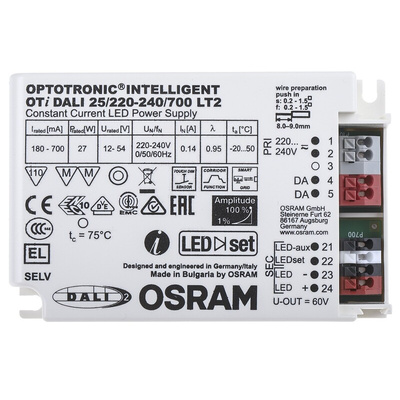

OTi DALI 25/220-240/700 LT2, Osram OPTOTRONIC Intelligent AC-DC, DC-DC Constant Current LED Driver Module 27W 12 → 54V, Драйвер светодиодов

Optotronic Intelligent OTi Dali 25/220 to 240/700 LT2 Compact Constant Current LED Driver.

The Optotronic Intelligent OTi Dali LT2 LED Driver is a versatile driver suitable for use in luminaires that have a flexible current (protection class I and II) and indoor SELV installations. OTi Dali LED drivers are designed for operating LED modules and developed for the lighting industry. This efficient driver is dimmable, has Smart Control protection, soft switch off function, plus, is suitable for buildings to EPBD, BREEAM and LEED due to the automatic Constant lumen output setting. Suitable for various applications this IP 20 LED driver is reliable, has a wealth of benefits plus is 88% ECG Efficient with 27 W output.

Features and Benefits.

•Intelligent OTi Dali LT2 LED Driver.
•Flexible output.
•High efficiency.
•Thermal management and Smart control protection.
•Dimmable, high quality 1 – 100% by amplitude.
•Soft switch off function (OTi Dali 15).
•Suitable for SELV installations.
•Three level corridor function.
•Touch DIM application (controlled by pushbutton or sensor).
•Energy efficient.
•Automatic switch.
•DC Detection.
•ECG Efficiency 88%.
•Output 27 W.
•Made from plastic.
•Lifespan 50,000 / 100,000 h.
•Overheat, overload and short circuit protection (automatic reversible).
•Maximum cable length to LED module 2m.
•1 Channel.
•Suitable for emergency lighting.
•Push terminal connection.

Mounting Features.

•Length 103 mm.
•Width 67 mm.
•Height 29.5 mm.
•Length, mounting hole spacing 94 mm.
•Width, mounting hole spacing 58 mm.
•Weight 149 g.

Typical Applications.

•Emergency lighting.
•Luminaires with a flexible current setting.
•Indoor SELV installations.
•Downlights.
•Spotlights.
•LED Panels.
•Luminaires with protection class I and II.
•Corridors.
•Restrooms.
•Buildings according to EPBD/BREEAM/LEED (automatic Constant lumen output setting).

Other Optotronic LED Drivers Available.

•Stock number 8930502, part OTi DALI 25/220 - 240/700 LT2.
•Stock number 8930514, part OTi DALI 50/220 – 240/1A4 LT2 FAN.
•Stock number 8930555, part OTi DALI 50/220-240/1A4 LT2 L.
•Stock number 1711594, part OTi DALI 50/220-240/1A4 LT2FAN.
•Stock number 1711603, part OTi DALI 35/220-240/700 LT2L.
•Stock number 8930549, part OTi DALI 35/220-240/700 LT2L.
•Stock number 8930542, part OTi DALI 80/220 – 240/1A6 LT2L.
•Stock number 1711602, part OTi DALI 80/220-240/1A6 LT2L.
•Stock number 8930546, part OTi DALI 80/220-240/2A1 LT2L.

Standards

ENEC 10, VDE, EMC, EL, CE, DALI-2, EN 61347-1, EN 61347-2-13, EN 55015, EN 61547, EN 61000-3-2, EN 62834, EN 62386, IEC 62836-101.Ed2, IEC 62386-102.Ed2, IEC 62386-207.Ed1.
