DALI MAGIC/220-240V DIM, Osram LED Driver Progammer, 54 → 240V Output, 1.5 → 90W Output, 250 → 1000mA Output, Constant, Драйвер светодиодов

8930558
Номер производителя: DALI MAGIC/220-240V DIMПроизводитель: Osram
Цена за шт.
150801.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+ −

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

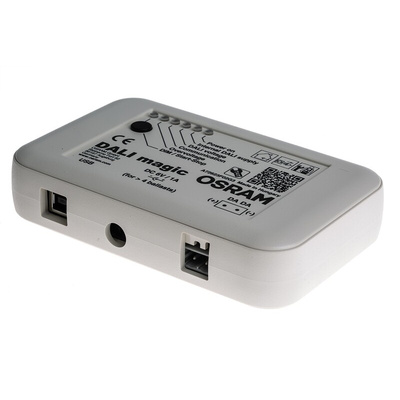

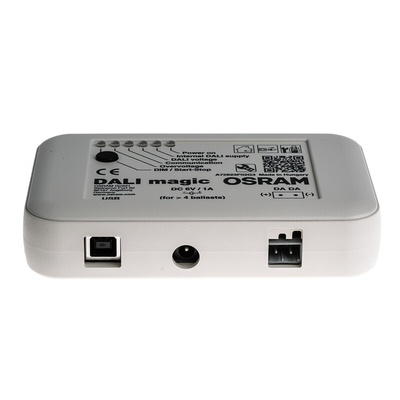

DALI Magic USB to DALI, IP20, Programming Interface.

OSRAM DALI Magic USB interface allows control, analysis and programming of DALI systems using a PC. DALI Magic is the control device for switching and dimming DALI lighting systems and can also test single lights or complete systems. This is a converter for Tuner4TRONIC and DALI wizard software for windows PC. The DALI Magic is powered by a USB or by included universal power supply. The interface has many features including a pushbutton allowing you to test DALI dimming, automatic DALI supply of up to 64 devices (4 if USB powered), offline and online configuration plus DALI-Spy functionality recording line flow.

Features and Benefits.

•USB to DALI programming interface.
•Control, analysis, programming of DALI systems.
•Uses a PC.

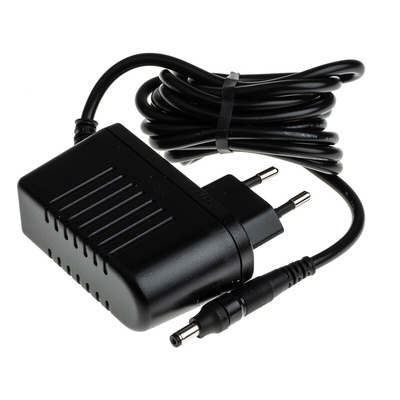

•Powered by a USB or universal power supply.

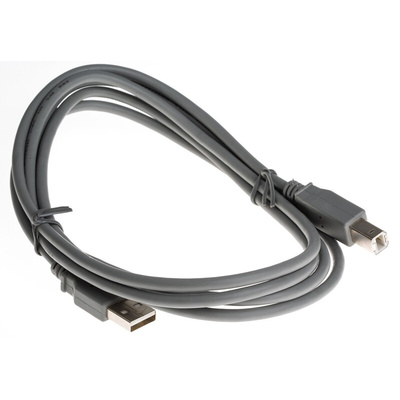

•USB connection type B (IEC 61076-3-108).
•Converter for Tuner4TRONIC / DALI wizard software (Windows PC).
•Push button testing DALI dimming (no need to connect to a computer).
•Configure up to 64 DALI electronic control gears.
•Integrated DALI supply of up to 64 devices (4 is USB powered).
•Offline and Online configuration.
•Monitors DALI ECG functions.
•Monitors DALI installations.
•Constant current
•IP20.
•Sealed.
•Frequency 50/60 Hz.
•7 W.
•1 Output.
•Ambient working temperature 0°C to +50°C.
•Colour is white.
•Housing is ABS.
•Indoor use only.

Software Features Tuner4TRONIC.

•Programming of OSRAM ECG.
•Fast manual / automatic programming.
•Enables use of pre-parameterization service.

Typical Applications.

•Shop floor applications.
•Configuration of DALI ECG functions.
•Monitoring DALI installations.

DALI Magic Dimensions.

•Length 120 mm.
•Width 76 mm.
•Height 28 mm.
•Weight 370 g.

Other DALI LED Drivers Available.

•Stock number 1740946, OTI DALI Constant Voltage LED Driver 80/220-240/24 TW.
•Stock number 1740945, OTI DALI Contstant Voltage LED Driver 50/220-240/24 TW.
•Stock number 8930502, OTI DALI Constant Current LED Driver 25/220-240/700 LT2.
•Stock number 8930555, OTI DALI Constant Current LED Driver 50/220-240/1A4 LT2 L.
•Stock number 8930514, OTI DALI Constant Current LED Driver 50/220-240/1A4 LT2FAN.
•Stock number 1711594, OTI DALI Constant Current LED Driver 50/220-240/1A4 LT2FAN.
•Stock number 1711603, OTI DALI Constant Current LED Driver 35/220-240/700 LT2L.
•Stock number 8930549, OTI DALI Constant Current LED Driver 35/220-240/700 LT2L.
•Stock number 8930542, OTI DALI Constant Current LED Driver 80/220-240/1A6 LT2L.
•Stock number 1711602, OTI DALI Constant Current LED Driver 80/220-246/1A6 LT2L.
•Stock number 8930546, OTI DALI Constant Current LED Driver 80/220-240/2A1 LT2L.

Техническая спецификация
pdfGuide to Buying LED Drivers
pdfDALI Magic Datasheet
Встречающиеся стандарты:
EN50172, EN55015, EN60598-2-22, EN60929, EN61000-3-2, EN61347-1, EN61347-2-13, EN61347-2-3, EN61547, EN-62384, IEC 61347-2-3, IEC 62386 – 101, IEC 62386 – 102, IEC 62386 – 207
Входное напряжение:
176 → 276 В пост. тока, 198 → 264 В перем. тока
Входное напряжение переменного или постоянного тока:
Переменный ток, Постоянный ток
Выходной ток:
250 → 1000мА
Количество выходов:
1
Конфигурация:
Sealed
Максимальная выходная мощность:
1.5 → 90Вт
Напряжение выходное:
54 → 240В
Номинальное напряжение:
176 → 276 В пост. тока, 198 → 264 В перем. тока
Операция:
Неизменяющийся ток
Первичный тип:
AC-DC, DC-DC
Рабочее диммирование:
DALI
Серия:
DALI Magic USB Interface
Степень защиты IP:
IP20
Тип драйвера светодиода:
LED Driver Progammer
