TE Connectivity 10kΩ Potentiometer Bracket Mount, SP1-50, Потенциометр

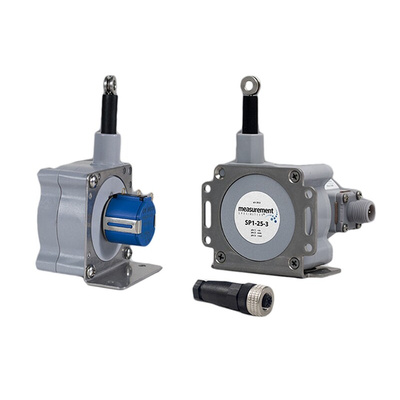

TE Connectivity SP1 Series Compact String Potentiometers

TE Connectivity’s MEAS SP1 series of string potentiometers offer a compact solution. The small size enables them to be fitted into small spaces, and the mounting bracket permits the user to position the string pot at any angle. These string potentiometers are constructed with a rugged polycarbonate enclosure and provide a linear measurement range of up to 50”/1270mm.

Features and benefits:

•Rugged polycarbonate body
•Included mounting bracket
•Linear position to 50 inches (1270mm)
•Essentially infinite resolution
•Compact to allow for easier mounting in tight spaces
•Free release tolerant measuring cable
•Voltage divider output

Applications:

•Industrial factory automation
•Medical devices
•Structural and automotive testing
•Die casting
•Injection moulding
•Hydraulic cylinder control

What is the advantage of a string potentiometer?

String pots make it extremely easy to measure the position of objects and their position. They can be installed very quickly and with because of their small size, it's easy enough to mount them in small spaces. Not to mention, they do not require you to have a spot on parallel alignment.
