2700467, Phoenix Contact Single-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V dc, 3 Safety Contacts, Реле безопасности

Phoenix Contact PSRmini Safety Relay

The PSRmini safety relays from Phoenix Contact are the most narrow safety relay on the market to provide proven safety thanks to force-guided contacts. The Innovative relay technology offers maximum safety and high switching loads up to 6 A.
The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators.

Features and Benefits

• Compatible with all important signal transmitters and safety-relevant systems
• Screw and push-in spring connection
• Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
• Up to 70% space saved
• Easy and quick diagnosis given means shorter downtime

Standards

EN ISO 13849-1, EN 62061, IEC 61508.

Approvals

CE, UL, cULus, TUV.

PSR-MC20-3NO-1DO-24DC-SP

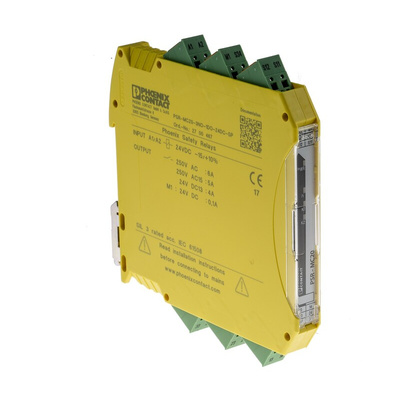

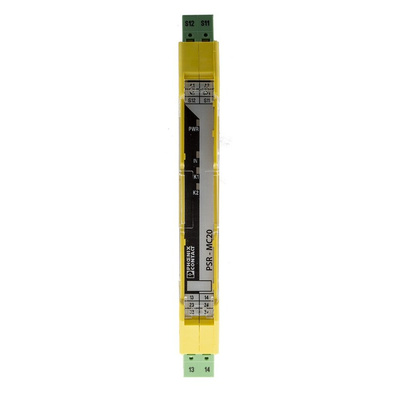

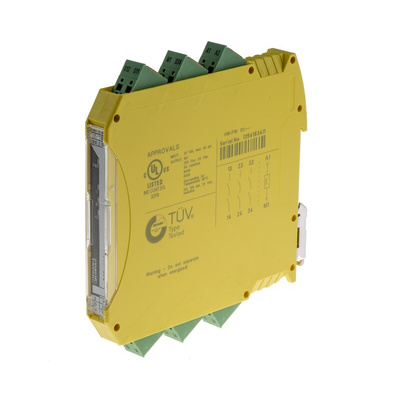

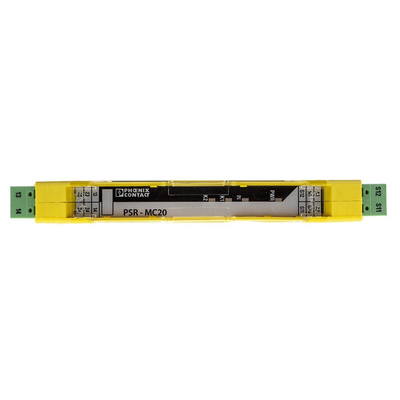

Phoenix Contact 2700467 highly compact PSRmini safety relay has a width of only 12.5 mm, automatic/manual start, spring cage connections, 1 digital output and 3 enabling current paths.
