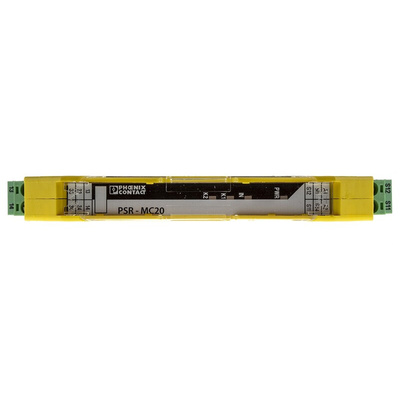

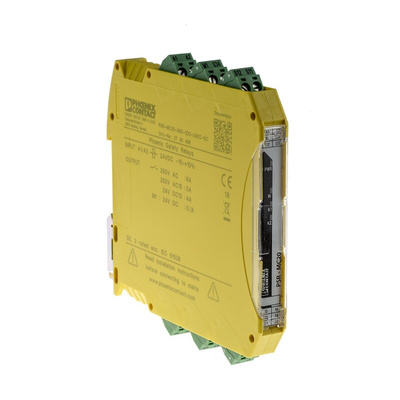

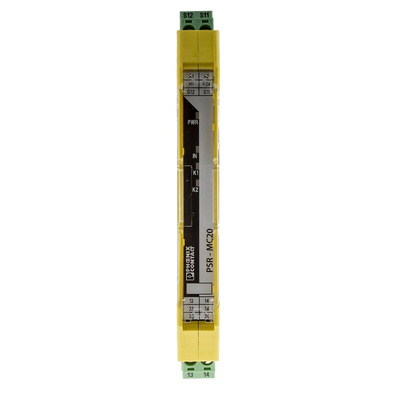

Phoenix Contact PSRmini Safety Relay
The PSRmini from Phoenix Contact is the most narrow safety relay on the market and provides proven safety thanks to force-guided contacts. The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators. The PSRmini has a variety of worldwide approvals making it suitable for all relevant markets.
Innovative relay technology offers maximum safety and high switching loads up to 6 A (force-guided contacts)
Cost/benefit optimization when structuring applications starting with one enable path
Compatibility with all important signal transmitters and safety-relevant systems enables a wide range of applications
Screw and push-in spring connection technology offers convenient control cabinet installation
Suitable for emergency stop, safety doors, light curtains and to control actuators
Various levels of approval for all global markets: category 1 to 4, PL c to PL e (EN ISO 13849-1), SILCL 1 to 3 (EN 62061), SIL 1 to 3 (IEC 61508)
Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
Single or dual channel devices available
Modular design of safety concepts possible: 6 mm version - 1 to 2 enabling paths, 12 mm version - 2 to 3 enabling paths
Stock nos. 893-7714, 893-7717, 893-7733 & 893-7742 are suitable for non-equivalent signal generators (e.g. magnetic switches).
Stock nos. 893-7723, 893-7727, 893-7698, 893-7708, 893-7691 & 893-7694 have cross-circuit detection.
CE, UL, cULus, TUV.Standards
EN ISO 13849-1, EN 62061, IEC 61508.
Declaration of Conformity
