2700570, Phoenix Contact Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V dc, 3 Safety Contacts, Реле безопасности

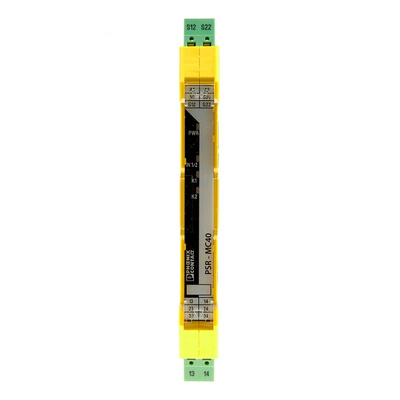

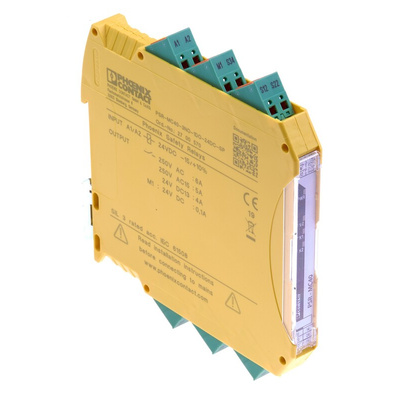

Phoenix Contact Safety Relay, Pluggable, 3 Auxiliary Contacts - PSR-MC40-3NO-1DO-24DC-SP - 2700570

Minimise the risk of accidents and unplanned downtime in your industrial environment with this safety relay from Phoenix Contact. It's designed to monitor machinery and initiate a suitable response in the event of an emergency. The integrated force-guided contacts are made from corrosion-resistant silver tin oxide for durability. As this unit has a mechanical service life of 10,000,000 cycles, you can rely on it for the long haul.
A simple plug-in installation method makes set-up quick and tool-free. Once fitted, the relay is resistant to shock and vibration, which helps prevent false tripping. When a trip happens, it has a recovery time of less than 500ms to swiftly get your systems back on track. For versatility, you can reset this unit manually or automatically. Use a device like this to monitor safety devices including light curtains, transponders and solenoid switches.

Features & Benefits

• LED signals for clear status configuration
• IP20 rating indicates it's protected against objects over 12mm in size
• Broad operating temperature range between -40°C and +55°C for safe use in tough environments
• PBT housing is wear-resistant for added durability
• Cage clamp terminals for secure connection to electrical circuits

Brochure

Declaration of Conformity

EC Certification

Datasheet

Line Drawing - 2700570
