2904950, Phoenix Contact Single-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V dc, 1 Safety Contacts, Реле безопасности

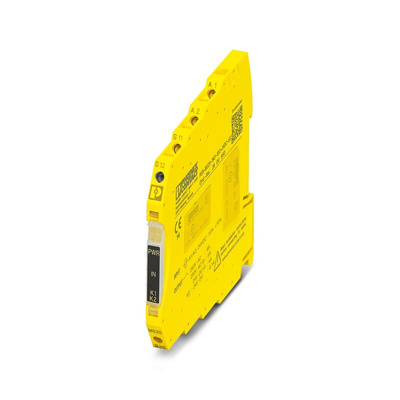

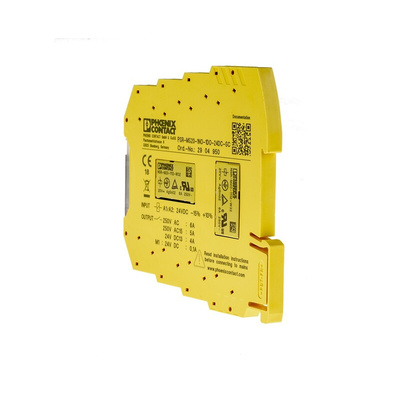

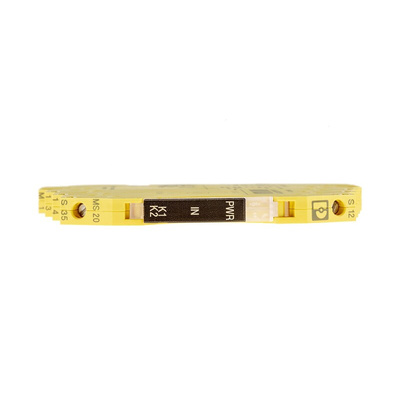

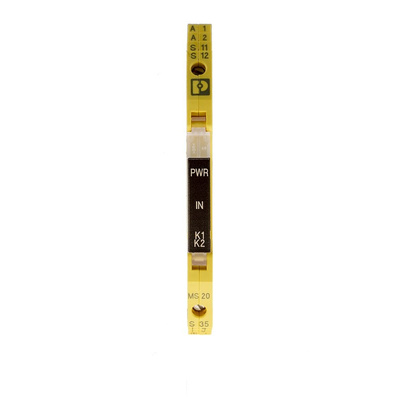

Phoenix Contact Safety Relay, 6.8mm Width, 1W Power - PSR-MS20-1NO-1DO-24DC-SC - 2904950

Need a space-saving device to protect your machinery from damage in an emergency? Use this super-slim safety relay from Phoenix Contact. It works by sending a signal to the control system if it detects a potential malfunction. The single-channel component monitors one device at a time and is ideal for regulating equipment including emergency switches and safety doors.
Built-in LED indicators display the unit's operating status so you can configure it with ease. A broad operating temperature range between -40°C and +60°C means you can safely use it in demanding environments. For added durability, it's also resistant to shock and vibration. To mount this relay, simply clip it to a DIN rail – you can install it vertically or horizontally for flexibility in your setup. A mechanical service life of 10,000,000 cycles ensures long-term performance.

Features & Benefits

• Compact dimensions of 102.5 (L) x 6.8 (W) x 93.1mm (H) to save space in busy panels
• Power consumption of 1W for use in low-powered devices
• Surge protection suppressor diode and reverse polarity protection to prevent electric hazards
• Manual and automatic reset for versatility

Brochure

Declaration of Conformity

EC Certification

Datasheet 2904950

Safety Charateristics

Line Drawing - 2904950
