2904958, Phoenix Contact Dual-Channel Emergency Stop, Safety Switch/Interlock Safety Relay, 24V dc, 2 Safety Contacts, Реле безопасности

Phoenix Contact PSRmini Safety Relay

The PSRmini safety relays from Phoenix Contact are the most narrow safety relay on the market to provide proven safety thanks to force-guided contacts. The Innovative relay technology offers maximum safety and high switching loads up to 6 A.
The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators.

Features and Benefits

• Compatible with all important signal transmitters and safety-relevant systems
• Screw and push-in spring connection
• Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
• Up to 70% space saved
• Easy and quick diagnosis given means shorter downtime

Standards

EN ISO 13849-1, EN 62061, IEC 61508.

Approvals

CE, UL, cULus, TUV.

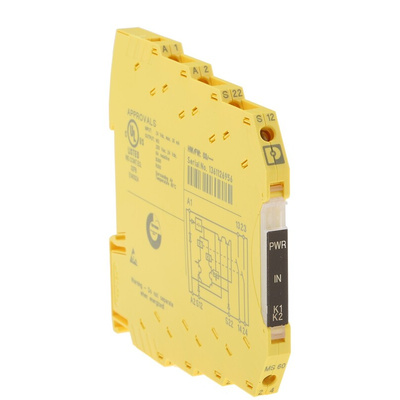

Phoenix Contact Two-Channel Safety Relay, 24V DC - PSR-MS60-2NO-24DC-SC - 2904958

Monitor the performance of your safety and emergency systems with this safety relay from Phoenix Contact. It features force-guided contacts that react to changes in the circuit, isolating it to prevent damage. The contacts are made from silver tin oxide with enhanced anti-corrosion properties, so they can withstand high inrush current surges up to 6A. With a low 500 milliseconds recovery time, the unit's a reliable option for rapid switching in demanding applications. You can use it with single and two-channel devices for added versatility.
Thanks to a wide operating temperature range of -40°C and +55°C, this relay is suitable for extremely hot and cold environments. With a width of just 6.8mm, it fits easily into busy setups and as it uses standard DIN mounting, you have the flexibility for vertical or horizontal installation. A housing made of PBT (polybutylene terephthalate) material is tough and able to withstand impact.

• Low power consumption of 0.96W for energy efficiency
• Ingress protection rating of IP20 indicates it's touch-proof
• Insulation rating of 6kV prevents electrical malfunction along the current path
• Green LED (light-emitting diode) displays for convenient status signalling
