2891320, Phoenix Contact Signal Converter

FO Converter

FO converter FL MC 1000 Series with fiber optic connections ,for converting 100Base-TX to multi-mode fiberglass.
SC or ST connectors fiber port.

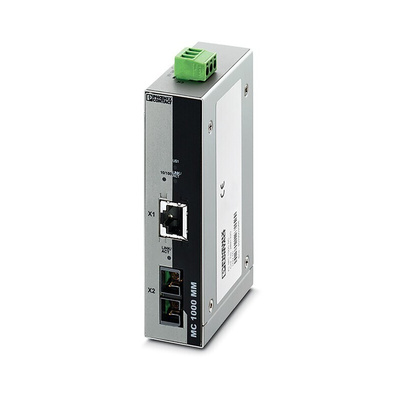

FO Converter FL MC 1000 Series
Auto MDI(X) function and comprehensive link diagnostics
10/100 Mbps twisted-pair RJ45 port
100 Mbps multimode fiber port with an:
- SC connector, stock no. 893-7818
- ST connector, stock no. 893-7812
DIN rail mounting

Phoenix Contact Fibre-Optic Signal Converter, 12 to 48V DC Supply Voltage, 73mA Current Consumption - FL MC 1000 SC - 2891320

Upgrade your data network with this signal converter from Phoenix Contact. It converts electrical signals from an existing copper-based interface to long-range fibre-optic signals, so you can retrofit your system without the need to replace the wiring. As fibre-optic signals are a light-based form of data transmission, they're less susceptible to EMI and attenuation, meaning you enjoy faster and clearer communication.
This converter supports a high-speed data transfer rate of up to 100Mbps (megabits per second) for efficient information exchange within and between worksites. It's designed for mounting on a DIN rail for ease of installation. Thanks to its compact dimensions of 110 (height) x 28 (width) x 70mm (depth), it takes up minimal space, helping you to increase packing density on your DIN rail.

• Consumes just 73mA of current at 24V DC for energy-efficient operation
• Light weight of 280.3g to minimise strain on your equipment
• Wide operating temperature range of 0°C to +60°C for use in demanding environments
• Low latency of 1.3 microseconds to minimise lag

Phoenix Contact

FO Converter FL MC 1000 SC - Data Sheet
