219.6337, Scame IP66 Red Cable Mount 3P + N + E Power Connector Plug ATEX, IECEx, Rated At 64A, 346 → 415 V

8938063
Номер производителя: 219.6337Производитель: Scame
Цена за шт.
106454.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

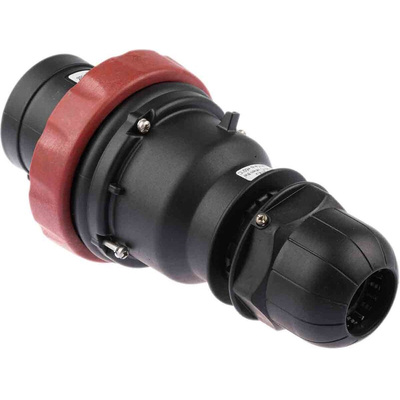

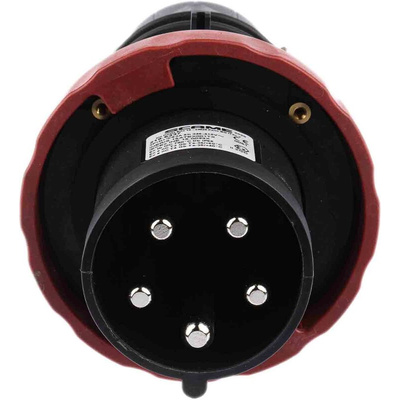

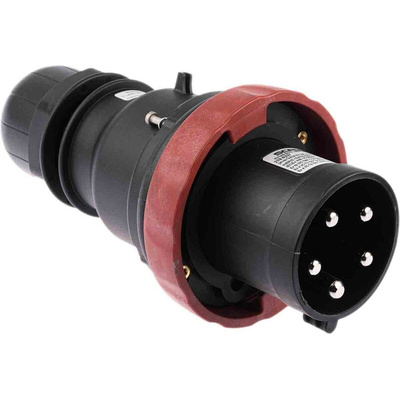

Scame IP66 Red Cable Mount 3P+N+E Power Connector Plug ATEX, IECEx, Rated at 63.0 A, 346 → 415 V

This cable-mount plug from Scame is well-suited to areas where large amounts of dust and gas pose an explosion risk. It's made from glass fibre-reinforced polyester, which makes it resistant to atmospheric agents and aggressive chemicals and gives it an impact resistance higher than 20 J at +20˚C. The connector is also extremely fire-resistant and will not emit smoke or halogens.

This 3-phase, neutral plus earth plug is designed to be used with switched interlocked power outlet units. It's voltage rated at 346 → 415 V and amp rated at 63.0 A.

This product has been rigorously tested for safe use in harsh environments. It conforms to European standards on industrial equipment (EN 60079, EN 60309) and has been ATEX and IECEx certified for use in potentially explosive atmospheres. The robust housing has an IP66 rating as dust-tight. It also meets RoHS standards on hazardous substances.

Features and Benefits

• 3-phase + neutral + earth male power connector plug
• Cable mounting
• Highly impact resistance, 20 J at +20°C
• Resistant to aggressive chemical substances and atmospheric agents
• Made from glass fibre reinforced polyester
• ATEX and IECEx certified for use in potentially explosive atmospheres
• IP66 rated as a dust-tight enclosure
• Voltage rating of 346 → 415 V
• Current rating of 63.0 A
• Working frequency of 50-60 Hz

Техническая спецификация
pdf219.6337 Datasheet
Номинал тока:
64A
Номинальное напряжение:
346 → 415 В
Разъем/гнездо:
Plug
Род:
Male
Сертификация опасной зоны:
ATEX, IECEx
Степень защиты IP:
IP66
Тип монтажа:
Кабельное крепление
Формат полюса:
3P + N + E
Цвет:
Красный
