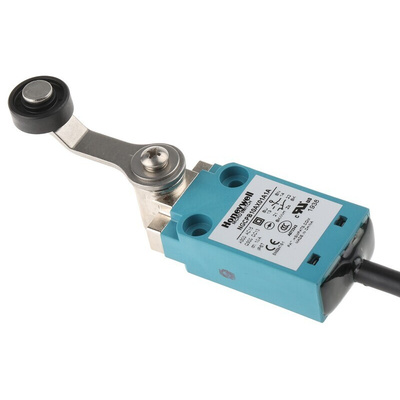

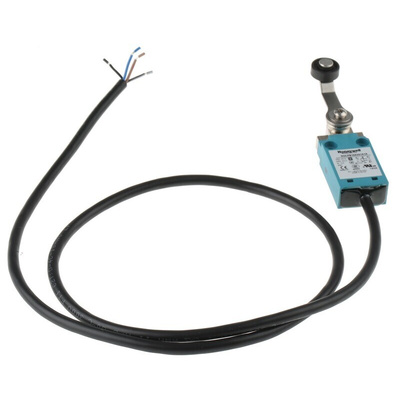

NGCPB10AX01A1A, Honeywell NGC Series Roller Lever Limit Switch, NO/NC, IP67, SPDT, Plastic Housing, 240V ac Max, 6A Max

Honeywell Positive Break Snap-Action Roller Lever Limit Switch, NO/NC, 240V AC - NGC Series - NGCPB10AX01A1A

This high-performance limit switch from Honeywell is a sensory device that detects objects and triggers actions for efficient automation. It has compact dimensions of 30 (length) x 32.5 (width) x 106.3mm (depth) for use in areas where space is limited. It features normally open (NO) and normally closed (NC) snap-action contacts that trigger the machine to perform an action as soon as an object is detected.
The component's durable plastic housing means it's resistant to impact for use in harsh environments. It's commonly used in assembly production lines and other industrial applications.

Features & Benefits

• Maximum voltage of 240V AC (alternating current) for use in low-voltage applications
• Long mechanical life of 5 million cycles for reliable performance
• Silver alloy contacts for reliable conductivity and corrosion resistance
• IP67 (ingress protection) rating for protection against dust and submersion in up to 1m of water for 30 minutes

Applications

• Boom position detection
• Rail doors
• Mobile light towers

How do I install this device?

This limit switch comes with M12 screws, making it simple to mount without the need for any specialised tools.
