RE72 342100E0, Lumel RE72 Panel Mount PID Temperature Controller, 48 x 48mm, 2 Output Current, Voltage, 85 → 253 V ac/dc Supply, Регулятор температуры

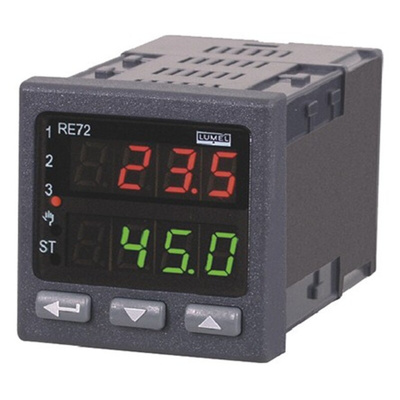

Lumel Temperature Controller

The Lumel RE72 series temperature controller has a supply voltage ranging from 85VAC/DC to 253VAC/DC. This controller has a width of 48mm and a height of 48mm. It provides two output of continuous current that is 0V to 10V and single binary input. This controller is used when the stabilization of temperature changes is necessary.

Features and Benefits

8 types of alarms
Binary input control
Functions of bistable alarm (Latch)
Measurement of heater current and heater burning control or short-circuit of the control element
ON/OFF, PID, PID step-by-step control (valve control) or PID of heating-cooling type
Password protection
Set point value: fixed value, programmed, or from an additional input
Soft start
Timer function
Universal measuring input

Applications

Dehydration industries
Food
Plastics

Certifications

IP65 rated

Datasheet
