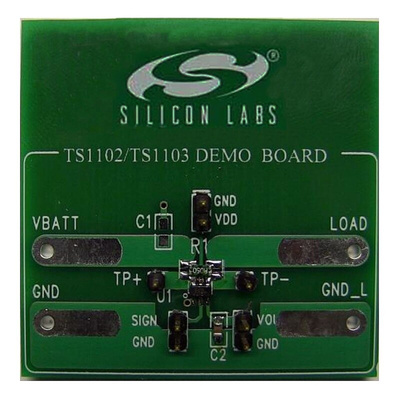

TS1102 Current-Sense Amplifier Demo Boards
Demonstration boards for the Silicon Labs TS1102 Current-Sense Amplifier. Available in a choice of four gain options; 25, 50, 100 and 200. These boards are fully assembled with your choice of gain and fully tested. The board is configured with an 50 mOhm resistor.
They have three dedicated test points; VBATT, VOUT and Load. These boards include a 47nF capacitor at the VOUT output pin.
The TS1102 are available in 5-pin SOT23 packages.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
