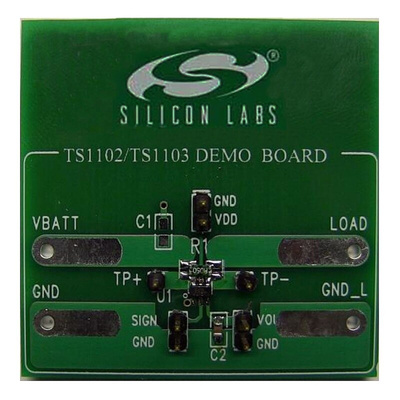

TS1103 Bidirectional Current-Sense Amplifier Demo Board
Demonstration boards for the TS1103, available in a choice of four gain options; 25, 50, 100 and 200. These boards are fully assembled and tested. The board is configured with an 50 mOhm resistor.
They have five dedicated test points; RS+, RS-, VDD, SIGN and output voltage. These boards include decoupling capacitor pad at the VBATT input pin and a 47nF capacitor at the VOUT output pin. The demo board can be set up to sense current in both directions.
The TS1103 has a wide input voltage range from 1.6 to 27 Volts and available in 6-pin SOT23 packages.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
