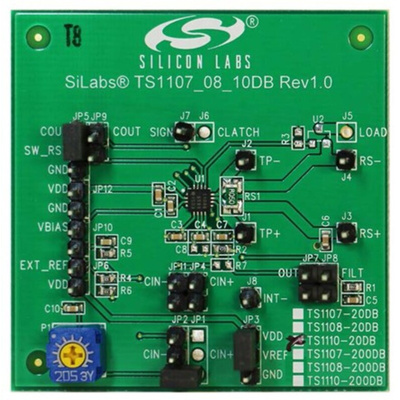

TS1110 Electronic Circuit Breaker: Bidirectional Current-Sense Amplifier with Current Limit and FET Control Demo Boards
Demonstration boards for the Silicon Labs TS1110 range. These electronic circuit breakers use a bidirectional current-sensing amplifier to detect the current limit and disconnect the load by using an external P-Channel MOSFET. They have an internal current limit comparator with an adjustable threshold and signal when a fault has occurred. The circuit breaker system has a typical delay of 428 μseconds.
Available in two gain options:
20 V/V - TS1110-20DB (RS 894-7121)
200 V/V - TS1110-200DB (RS 894-7112)
These demo boards are supplied fully assembled and tested. The TS1110 are available in 16-pin TQFN packages.
Current Sensing Amplifiers have a voltage output that is proportional to the volt drop across a very low value resistor, usually in a high-current power rail. Hence they measure the current flowing in that power rail.
Техническая спецификация
TS1107/TS1110 Current Sense Amplifier DatasheetTS1110 Electronic Circuit Breaker and TS1107 Current Limiter User GuideESD Control Selection Guide V1| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
