AFIM-1001, ZF Energy Harvesting Generator Wireless Switch Generator for use with Wireless Snap and Rocker Switches

Energy Harvesting RF Generator Plug and Play

The Cherry Energy Harvesting Generator turns mechanical vibration into electrical energy. When actuated, a mechanical force acts vertically on the end of the generator’s lever. A patented mechanism then converts the mechanical energy generated into electrical energy in the form of a voltage pulse. Please note that this product must be used in conjunction with suitable RF electronics. This Energy Harvesting Generator is integral to Cherry's rocker and snap switches (Rocker – Stock no 8736671 & Snap – Stock no 8736675).

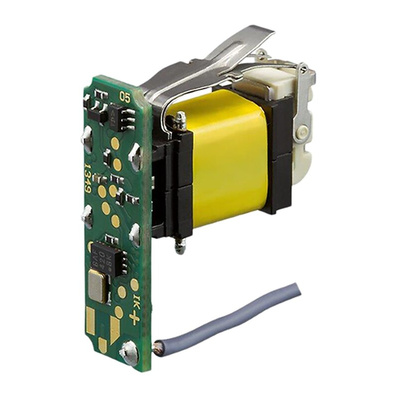

The Cherry AFIM-1001 offers a Plug and Play functionality the RF generator is mounted on a board and comes complete with built in RF electronics, ZF protocol wire, antenna and is configured for 868MHz. Ideally suited for easy design in of the RF generator.

Small size, with high energy efficiency
Long mechanical life.

Note

Energy Harvesting
In our connected world, there is strong demand for easy and flexible data transmission, preferably with low energy consumption. Cherry's innovative wireless and battery-less Energy Harvesting Generator is effective in a variety of environments and functions. Energy harvesting can be found in diverse market sectors, including industrial and building automation, smart home and medical. Cherry's technology offers an excellent wireless alternative to wired or battery-powered equipment. Compatible with multiple protocols (product dependant), the products are suitable for global use. As there is no need to change or dispose of batteries, the solution is both environmentally friendly and low maintenance.
