RS PRO 3P+E DIN 43650 A, Female Solenoid Connector, with Indicator Light, 24 V dc Voltage, Разъем

RS PRO 3P+E DIN 43650 A, Female Solenoid Connector, 24 V DC Voltage

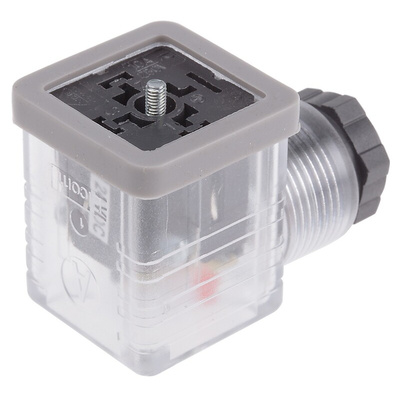

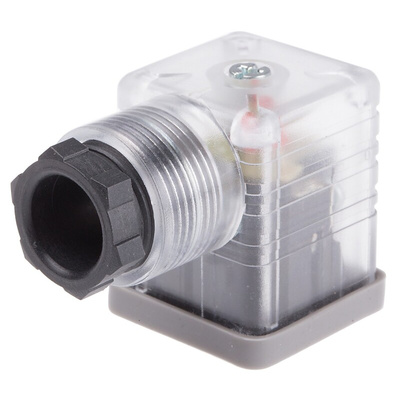

This three-pole female solenoid connector from RS PRO can be used to connect solenoid valves in pneumatic systems. The screw mount supplied makes it easy to fit securely in place, while the PG11-sized cable gland provides an airtight seal between the valve and the cable.
The body is transparent for easy observation and made from an extremely robust polycarbonate material. A nitrile rubber seal protects against leakage and protects the pneumatic system from contamination. The connector can be used at temperatures up to +90°C, which makes it suitable for use in a wide range of industrial environments. Maximum contact resistance of 20m ohms ensures high-quality transmission of the electrical signal.
Connectors of this type are typically used in industrial manufacturing. Other applications include signal and power transmission in temperature sensors, magnetic valves and pressure transducers.

Features and Benefits

• PG9 cable gland size
• Clear colour
• Current rating of 10 A
• Voltage rating of 24 V DC
• Female, DIN 43650 A type connector
• Screw mounting type
• Four contacts
• Indicator light
• Pole format of 3P+E

RS Pro Datasheet
