P01651901, Chauvin Arnoux CA 1950 Bluetooth, SD card, USB Thermal Imaging Camera, -20 → +250 °C, 80 x 80pixel Detector, Тепловизор

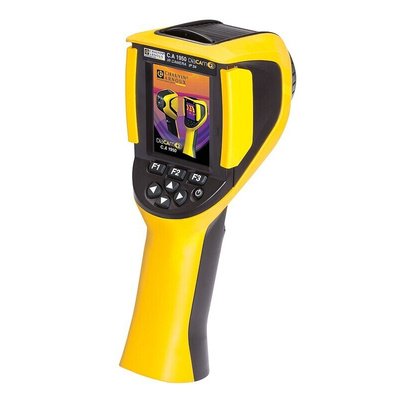

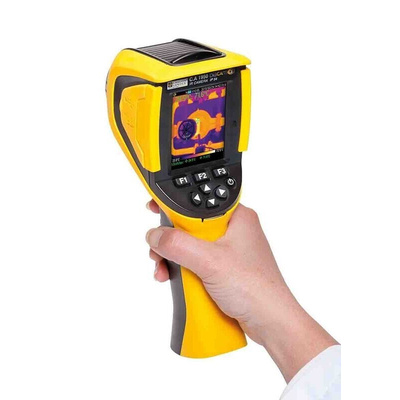

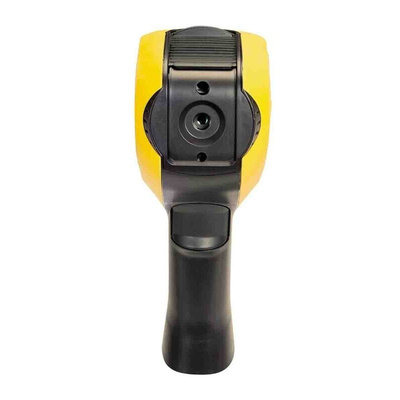

C.A 1950 DiaCAm 2 Thermal Camera

The C.A 1950 Thermal Camera makes it very simple to perform your thermal inspections for your energy audit and ensures trouble-free industrial, electrical or mechanical maintenance. The C.A 1950 is a communicating camera which can recover the necessary measurements (current, etc.) from current clamps and multimeters via Bluetooth.

80 x 80 UFPA microbolometer-type detector, 8 -14 μm
IFOV (spatial resolution) 4.4 mrad
Field of view (20°x20°)
Focus: Fixed
Temperature range -20°C to +250°C
Display mode: thermal image, real image with automatic parallax compensation
Image merging available with PC software
Measuring tools: 1 manual cursor+ 1 automatic detection + Min Max on adjustable area + Temperature profile + Isotherm
Adjustable parameters: emissivity, environmental temperature, distance, relative humidity
2 GB (approx. 4000 images) on micro SD card, up to 32 GB with removable card
Environmental protection: IP 54

Supplied with

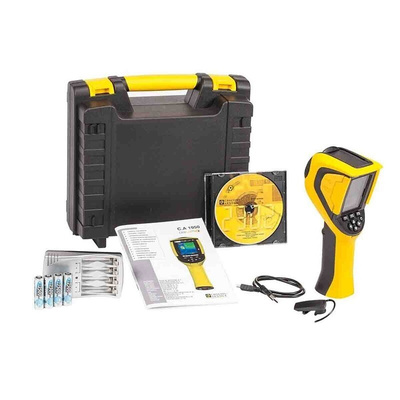

C.A 1950 Thermal camera, hard case, 4 NiMH batteries, battery charger, 1 micro SD HD card, 1 USB cable, 1 set of Bluetooth earphones, CAmReport software on CD ROM, operating manuals.

C.A 1950 Thermal camera

User's Manual CA 1950
