P01191773, Chauvin Arnoux CA 773, LED Voltage tester, 1000 V ac, 1400V dc, Continuity Check, Battery Powered, CAT IV

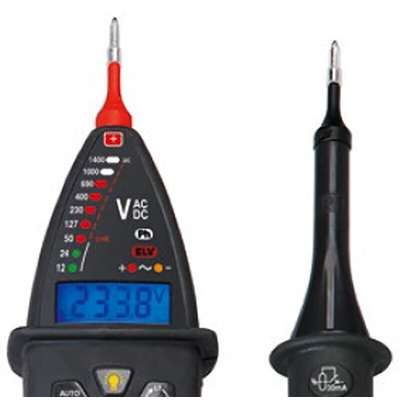

C.A 773 Voltage Absence Tester (VAT) CAT IV 1000V

The C.A 773 Voltage Tester is a VAT with digital display and LEDs for voltages up to 1000 VAC/1400 VDC with with audible extended continuity and phase rotation testing. The Voltage Tester also offers trip testing of RCDs rated 30 mA (or less), as well as lighting of the test probe/point of measurement and digital display of the resistance and voltage.

1000 VAC / 1400 VDC
Single-pole phase test
Continuity andresistance test with audible and visual indication
Two-pole phase sequence test with 2-wire method
RCD trip testing and Detection of stray voltages
Lighting of point of measurement. CAT IV 1000V
IP65

Standards

IEC 61243-3:2009, EN 61243-3:2010, IEC 61010 1,000 V CAT IV

Supplied with

Voltage absence tester, User's guide in 5 languages, 2 x 1.5 V LR03/AAA batteries, 1 set of removable test probes Ø 2 mm with crystal safety cover, 1 probe-tip protection and 1 Velcro strap.

Datasheet C.A 773
