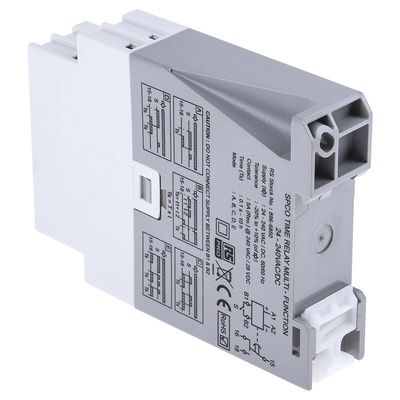

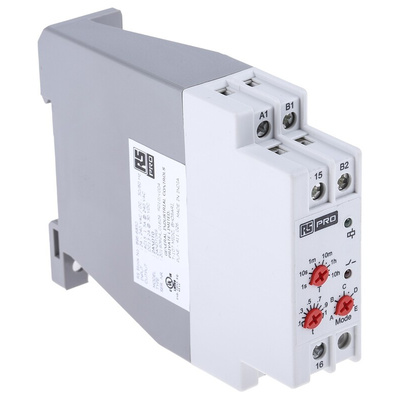

RS PRO DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.1 s → 10h, SPDT

RS PRO Multi-Function Timer Relay, 24 V AC/DC to 240 V AC/DC, 0.1 s to 10 h, DIN Rail Mounting

This multi-function timer relay from RS PRO is designed to allow electrical circuits to be activated at certain times. Its delay function can be set to as short as 0.1 seconds or as long as 10 hours, meaning you can activate processes overnight if needed. Use it to control an electrical load or simply to automate an action.
The relay can operate in the presence of electrical noise, or electromagnetic interference (EMI), without negative effects on its function. Its operating knobs are flush with its housing to prevent accidental adjustment of the settings. The relay's quick to mount on a DIN rail and its slim design means it fits in compact spaces.
This unit is suitable to use with telecom, security and network devices. Its enclosure offers the relay protection from tools and small wires greater than 1 mm so it has an Ingress Protection (IP) rating of IP40.

Features and Benefits

• Single Pole Double Throw (SPDT) contact configuration
• Current operating range of 0.1 to 5 A
• Dimensions of 100.5 (D) x 75 (L) x 22.5 (W) mm
• Operating temperature range of -15°C to +60°C
• Supply voltage of 24 to 240 V AC/DC
• Suitable for mounting on a DIN rail
• One contact
• Multi-function timer
• External power supply
• Single Pole Change Over (SPCO) switch configuration
• Screw terminal type
• Time delay of 200 milliseconds
• Time increment of seconds
• Time range of 0.1 second to 10 hours
