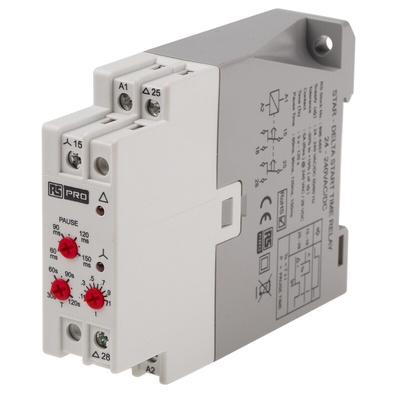

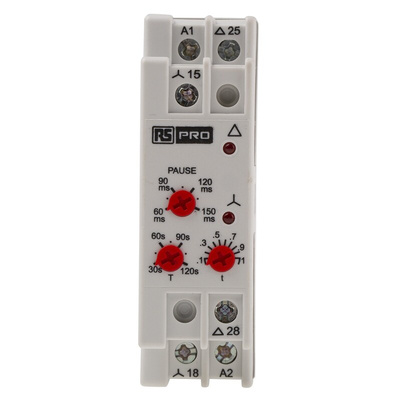

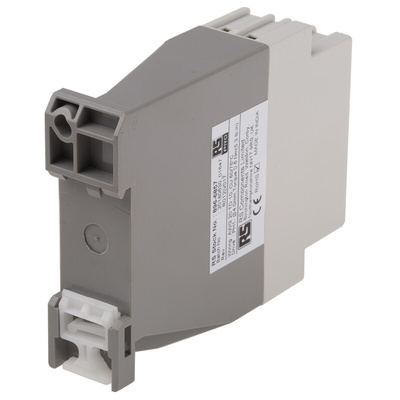

RS PRO DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 3 → 120s, 1-Function, SPST

RS PRO Timer Relay, 24 V AC/DC to 240 V AC/DC, 3 s to 120 s, DIN Rail Mounting

This star-delta time relay from RS PRO reduces a motor's starting current to prevent voltage spikes or inrush current from causing damage. It's ideally suited to starting a three-phase induction motor and can be used with a wide supply voltage range of 24 V AC/DC to 240 V AC/DC.
The unit's run-time and status is quick and easy to see, thanks to its bright LED (light-emitting diode) display. Its extremely compact design requires minimal space – improving packing efficiency on your electrical board. Flush operating knobs don't protrude from the relay, which helps prevent your settings from being accidentally altered.
You can use a relay like this to automatically switch off lights after a pre-determined time. Its enclosure has an Ingress Protection (IP) rating of IP40, so the unit is safe from tools and wires larger than 1 mm.

Features and Benefits

• SPNO (Single Pole Normally Open) contact configuration
• Suitable for use with currents from 0.1 to 5 A
• Dimensions of 100.5 (D) x 22.5 (L) x 75 (W) mm
• Operating temperature range of -15°C to +60°C
• Suitable for mounting on a DIN rail
• Two contacts
• Single time function
• External power supply
• Supply voltage of 24 to 240 V AC/DC
• SP (Single Pole) switch configuration
• Screw terminal type
• Time delay of 200 milliseconds
• Time increment of seconds
• Time range of 3 to 120 seconds
