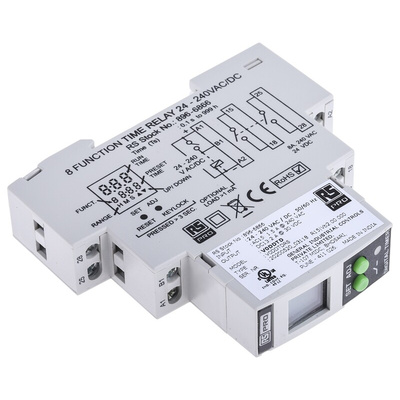

RS PRO DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 01. s → 999h, DPST

RS PRO Multi Function Timer Relay, 24 V AC/DC to 240 V AC/DC, 01 s to 999 h, DIN Rail Mounting

Instruct machines and equipment when to activate and deactivate with this multi-function relay from RS PRO. You can use it to ensure items move from one conveyor belt to another when required, to stop them piling up on top of each other.

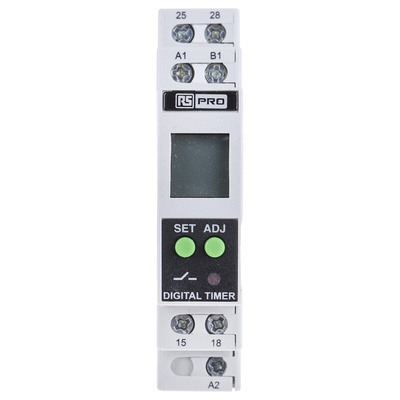

The user-friendly unit is easy to programme by using just two keys. Its eight functions cover a wide range of commands to improve its versatility in use. An LCD (liquid-crystal display) offers a clear and easily read indication of the unit's run time or pre-set time. Its extensive time range means you can set its delay function from 0.1 seconds to up to 999 hours.
A time-delay relay like this helps improve factory safety by providing a scheduled window to clear noxious gases from a chamber. It includes a locking function to prevent unauthorised users from changing its settings.

Features and Benefits

• DPNO (Double Pole Normally Open) contact configuration
• Current operating range of 0.1 to 8 A
• Dimensions of 76 (D) x 89 (L) x 17.5 mm (W)
• Operating temperature range of -10°C to +55°C
• Suitable for mounting on a DIN rail
• Two contacts
• Multi-function timer
• External power supply
• Supply voltage of 24 to 240 V AC/DC
• DPNO (Double Pole Normally Open) switch configuration
• Time increment of hours, minutes, seconds
• Time range of 0.1 seconds to 999 hours
