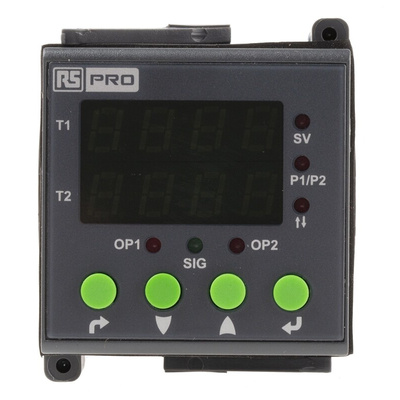

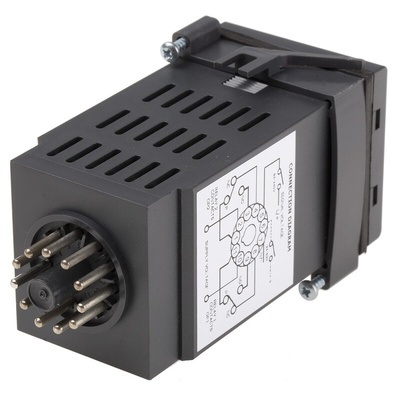

RS PRO Panel Mount Timer Relay, 110 → 240V ac, 2-Contact, 0.1 s → 999days, DPDT

RS PRO Multi-Function Timer Relay, 110 V AC to 240 V AC, Panel Mounting

Use this versatile RS PRO timer relay to control the movement of loads or production processes. It can activate a multitude of different machinery and has an integrated time-delay function that you can pre-set to energise equipment at certain times.
The relay's 33 standard timing functions give you a wide range of settings to choose from and the unit's 2 x 4-digit display is quick and easy to programme. It offers enhanced safety, thanks to its lock facility that prevents unauthorised personnel from changing its settings. High timing accuracy ensures precise operation to keep your system running smoothly and efficiently.
Use this product to instruct any industrial electrical devices or machines, such as security lights, to activate. Its Ingress Protection (IP) rating of IP30 means it's protected from small tools and wires that are bigger than 1 mm.

Features and Benefits

• DPDT (Double Pole Double Throw) contact configuration
• Current operating range of 0.125 to 5 A
• Dimensions of 92.5 (D) x 48 (L) x 48 mm (W)
• Operating temperature range of -5°C to +55°C
• Suitable for panel mounting
• Two contacts
• Multi-function timer
• External power supply
• Supply voltage of 110 to 240 V AC
• DPDT (Double Pole Double Throw) switch configuration
• PCB (Printed Circuit Board) pin terminal
• Time delay of 200 milliseconds
• Time increments of days, hours, minutes, seconds

Installation Instruction Manual

RS Pro Datasheet
