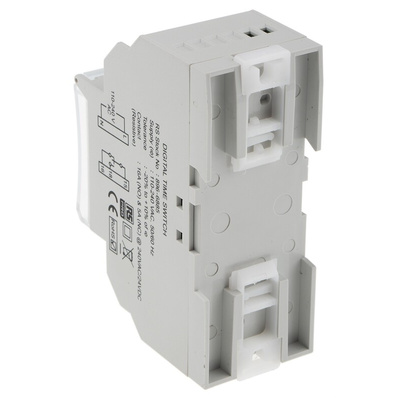

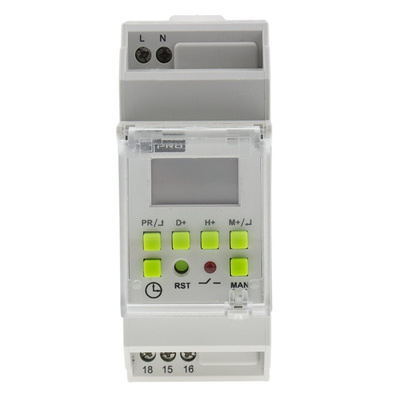

RS PRO Digital Pulse Switch DIN Rail Time Switch 110 → 240 V ac, 1-Channel

RS PRO 1 Channel Digital DIN Rail Time Switch Measures Hours, 110 → 240 V AC

This digital DIN rail (Deutsches Institut für Normung, the German Institute for Standardisation) time switch from RS PRO controls on/off mechanisms in lighting components, heating applications and industrial equipment.

The handy electrical device can control automatic barriers and doors and also manage automated machinery. In addition, it helps save energy by switching off heaters or lights when they're not needed, most commonly overnight.

This time switch comes with DIN rail mounting, which is a more flexible option than panel-mounted versions. Time is measured in hours on the easily readable LCD (liquid crystal) display and can be set to either 12-hour or 24-hour format. Navigation is easy with a simple reset and manual override.

The battery life on this sturdy product is six years, so you won't have to worry about replacing them for a while. It's suitable for a wide range of applications and settings

We offer the following versions:
896-6876, 896-6891 (24Hr/7 Day – e.g. for advertising signs)
896-6885 (Pulse function – e.g. for sirens, school bells)

Features and Benefits

• DIN rail time switch
• Supply voltage of 110 to 240 V AC
• Measures hours
• Digital
• Single channel
• Segment length of one second
• Three lines text LCD display
• 12/24 h display formats
• DIN rail mounting
• Height of 90 mm
• Depth of 65 mm
• 16 Pulse Programs
• 6-year battery life
• LED indication of relay status
• Settable DST and keypad lock feature
• IP20 (terminals) and IP40 (enclosure) protection
• SPDT (single pole double throw) contact configuration
