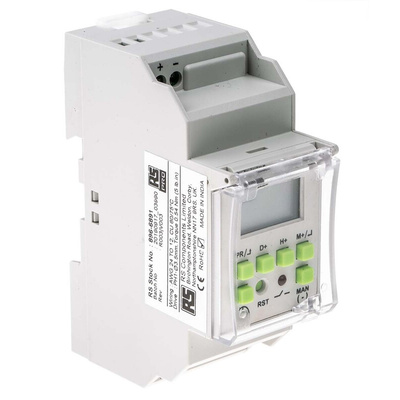

RS PRO Digital DIN Rail Time Switch 12 V dc, 1-Channel

RS PRO 1 Channel Digital DIN Rail Time Switch Measures Hours, 12 V DC

This single channel digital time switch from RS PRO lets you control the on/off switches on lighting components, heating applications and industrial equipment. The 'DIN' in DIN rail time switch stands for Deutsches Institut für Normung, which is the German Institute for Standardisation.

DIN rail time switches are versatile and can be used by manufacturers to manage automated machinery, control automatic barriers and doors and for turning on heaters and lights only when needed, which conserves energy and prevents devices from being left on unnecessarily.

This time switch can display three lines of text clearly as an LCD (liquid-crystal) display. Time is measured in hours in both 12-hour and 24-hour display formats. The interface is easy to navigate thanks to its simple reset and manual override.

This hardwearing product has a battery life of six years. Its robust housing is IP40-rated for protection against small wires and tools.

We offer the following versions:
896-6876, 896-6891 (24Hr/7 Day – e.g. for advertising signs)
896-6885 (Pulse function – e.g. for sirens, school bells)

Features and Benefits

• DIN rail time switch
• Supply voltage of 12 V DC
• Digital
• Single channel
• Measures hours
• Segment length of 1 min
• Height of 90 mm
• Depth of 65 mm
• Three lines text LCD display
• 12/24 h display formats
• DIN rail mounting
• 25 on-off programs
• 6-year battery life
• LED indication of relay status
• Settable DST and keypad lock feature
• IP20 (terminals) and IP40 (enclosure) protection
• SPDT (single pole double throw) contact configuration

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Installation Instruction Manual

RS PRO Datasheet
