RS PRO Hour Meter Counter, 6 Digit, 50Hz, 10 → 80 V dc, Счетчик часов

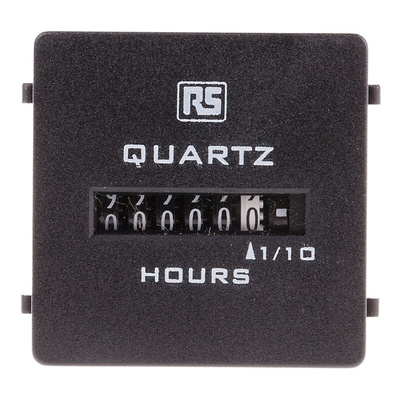

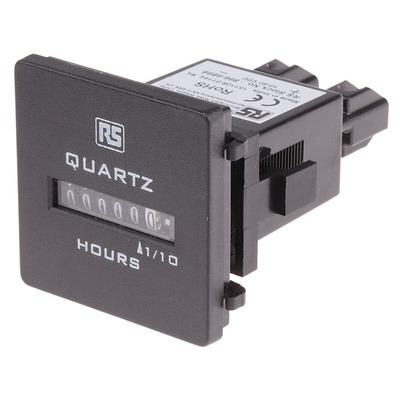

RS PRO Hour Meter Counter, 6 Digit Analogue, 50 Hz, 10 to 80 V DC

Keep track of how long your machinery has been running using this RS PRO hour meter. The analogue device is found in commercial settings from production lines to dairies.
This unit has an Ingress Protection (IP) rating of IP66, meaning it's safe from dust and sprays of water from all directions. It's also resistant to shock and vibration

Features and Benefits

• CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved

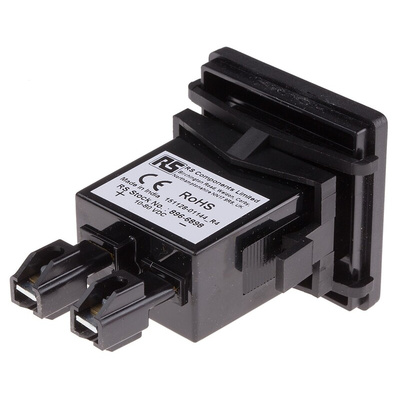

• Spade terminal connection type
• Count capacity of 99999.9 h
• Count direction of up
• Count mode of hours
• Cutout height of 24.1 mm
• Cutout size of 45 x 45 mm
• Cutout width of 45 mm
• Digit height of 3.6 mm
• Analogue display type
• Hour meter function
• Voltage input type
• Maximum count frequency of 50 Hz, 60 Hz
• Maximum measurement of 99999.9 h
• Measurement range of 99999.9
• Meter accuracy of ±0.02%
• Electronic meter type
• Minimum measurement of 0 h
• Minimum operating temperature of -40°C
• Panel mounting type
• Six digits
• No reset method
• Square shape
• Supply voltage of 10 to 80 V DC
• Weight of 47 g

Dimensional Drawing

RS Pro Datasheet
