RS PRO Hour Meter Counter, 6 Digit, 50Hz, 90 → 264 V ac, Счетчик часов

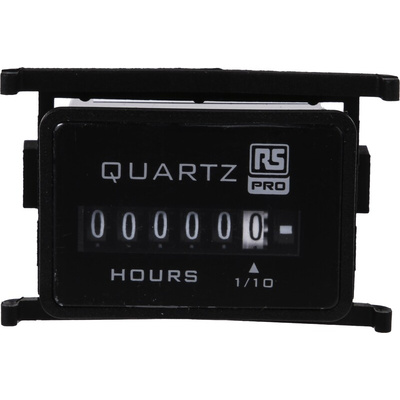

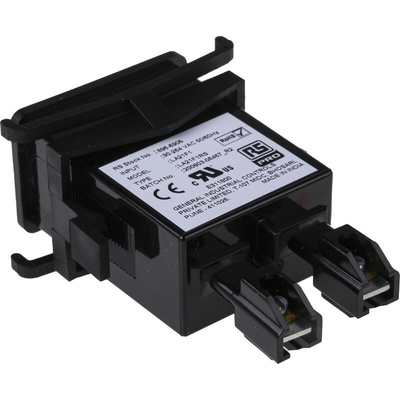

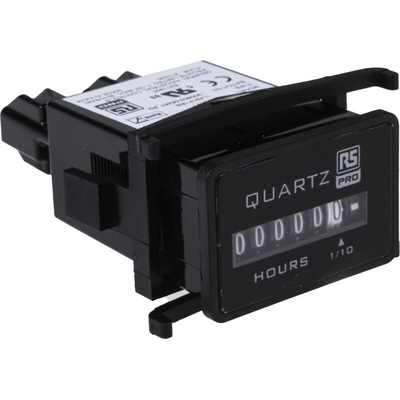

RS PRO Hour Meter Counter, 6-Digit Analogue, 50 Hz, 90 to 264 V AC

Use this hour meter from RS PRO to keep track of how long your machinery has been running. You'll find this analogue device used across a range commercial settings, from production lines to dairy farms.


The meter is designed to be highly accurate thanks to a display showing up to six digits. The unit counts in hours, with a range from 0 to 99999.99, making it suitable for use with a wide range of machinery. It's designed to withstand shock and vibration, meaning it's safe to use in harsh industrial environments without damaging the device.


This unit has an Ingress Protection (IP) rating of IP66, meaning it's safe from dust and low-pressure sprays of water from all directions. It also comes with a range of international approvals, so you can rest assured it's a reliable choice.

Features and Benefits

• CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved


• Spade terminal connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.1 mm


• Cutout width of 36.8 mm


• Depth of 70.95 mm


• Digit height of 3.6 mm


• Analogue display type


• Hour meter function


• Voltage input type


• Minimum measurement of 0 h


• Maximum measurement of 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Maximum count frequency of 50 Hz, 60 Hz


• Minimum operating temperature of -40°C


• Panel mounting type


• Six digits


• No reset method


• Rectangular shape


• Supply voltage of 90 to 264 V DC


• Weight of 47 g

Dimensional Drawing

RS Pro Datasheet
