RS PRO Hour Meter Counter, 6 Digit, 50Hz, 10 → 80 V dc, Счетчик часов

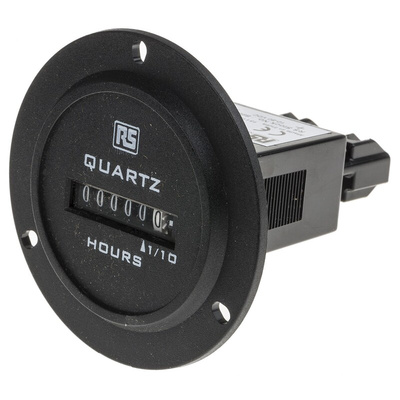

RS PRO Hour Meter Counter, 6-Digit Analogue, 50 Hz, 10 to 80 V DC

Use this hour meter from RS PRO to monitor how long your machinery has been running. It's commonly used to monitor machinery in production lines and dairy farms.


The display shows up to six digits for a high level of accuracy. The unit counts in hours, with a range from 0 to 99999.99, making it suitable for use in a large range of applications. As it can withstand shock and vibration, it's safe for use in harsh industrial environments.


This unit comes with a range of international approvals, so it's a reliable choice. Its Ingress Protection (IP) rating of IP66 means it's protected against dust and low-pressure sprays of water from all directions.

Features and Benefits

• CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved

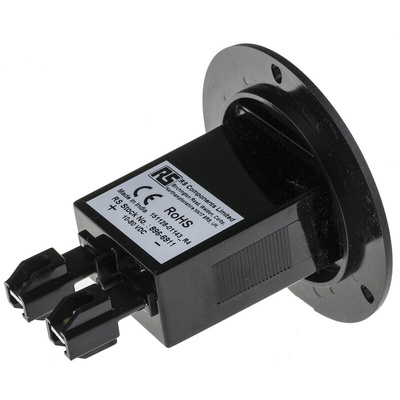

• Spade terminal connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.1 mm


• Cutout width of 64.26 mm


• Depth of 67.9 mm


• Digit height of 3.6 mm


• Analogue display type


• Hour meter function


• Voltage input type


• Minimum measurement of 0 h


• Maximum measurement of 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Maximum count frequency of 50 Hz, 60 Hz


• Minimum operating temperature of -40°C


• Panel mounting type


• Six digits


• No reset method


• Rectangular shape


• Supply voltage of 10 to 80 V DC


• Weight of 47 g

Dimensional Drawing

RS Pro Datasheet
