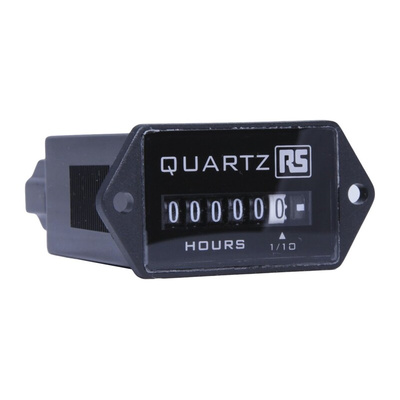

RS PRO Hour Meter Counter, 6-Digit Analogue, 50 Hz, 90 to 264 V AC

This hour meter from RS PRO lets you monitor how long your machinery has been running. As it displays up to six digits, it offers a high degree of accuracy. It's suitable for a range of applications thanks to its broad counting range of 0 to 99999.9 hours.


The analogue device is resistant to shock and vibration, making it a safe and durable choice for use in harsh industrial environments. It also has an Ingress Protection (IP) rating of IP66, so it's protected against dust and low-pressure water sprays.


You'll commonly find this unit used in production lines and dairies. You can be sure it's a reliable device as it comes with a range of international approvals.

Features and Benefits

• CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved


• Spade terminal connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.1 mm


• Cutout width of 36.8 mm


• Depth of 70.95 mm


• Digit height of 3.6 mm


• Analogue display type


• Hour meter function


• Voltage input type


• Minimum measurement of 0 h


• Maximum measurement of 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Maximum count frequency of 50 Hz, 60 Hz


• Minimum operating temperature of -40°C


• Panel mounting type


• Six digits


• No reset method


• Rectangular shape


• Supply voltage of 90 to 264 V AC


• Weight of 47 g

Dimensional Drawing
