RS PRO Hour Meter Counter, 6 Digit, 50Hz, 90 → 264 V ac, Счетчик часов

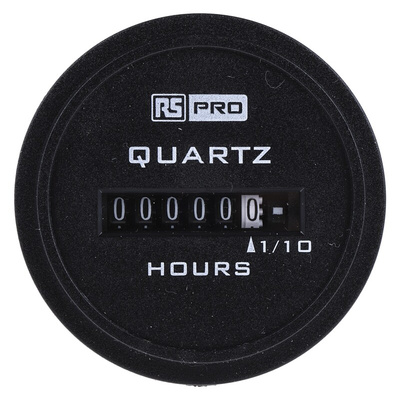

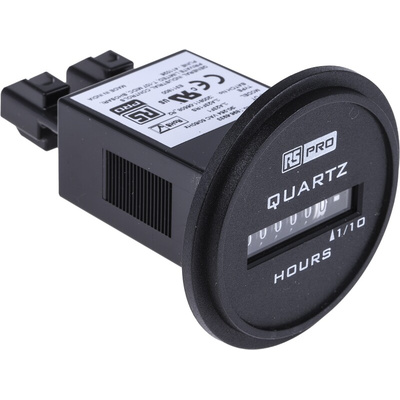

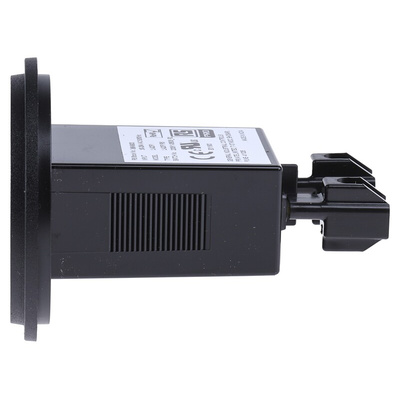

RS PRO Hour Meter Counter, 6-Digit Analogue, 50 Hz, 90 to 264 V AC

For a highly accurate time-tracking solution in your machinery, turn to this RS PRO hour meter. It keeps track of how long your machine has been running within a wide range of 0 to 99999.9 hours. Thanks to its six-digit display, it provides a high degree of accuracy for precise measurement in a number of applications.


The unit is resistant to vibration and shock, so you can use it in heavy-duty environments without the risk of damaging the device. Its Ingress Protection (IP) rating of IP66 also means it's safe from dust and low-pressure water sprays.


For peace of mind, this reliable product comes with a range of international approvals. An hour meter like this one is commonly used in commercial settings such as production lines and dairies.

Features and Benefits

• CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved

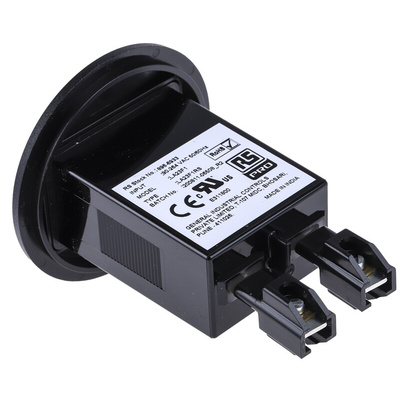

• Spade terminal connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.1 mm


• Cutout width of 45 mm


• Digit height of 3.6 mm


• Analogue display type


• Hour meter function


• Voltage input type


• Minimum measurement of 0 h


• Maximum measurement of 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Maximum count frequency of 50 Hz, 60 Hz


• Minimum operating temperature of -40°C


• Panel mounting type


• Six digits


• No reset method


• Square shape


• Supply voltage of 10 to 80 V DC


• Weight of 47 g

Dimensional Drawing

RS Pro Datasheet
