RS PRO Hour Meter Counter, 6 Digit, 50Hz, 10 → 80 V dc, Счетчик часов

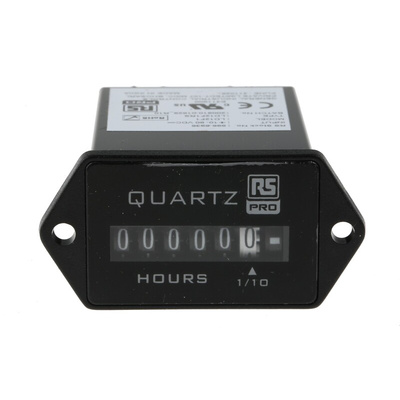

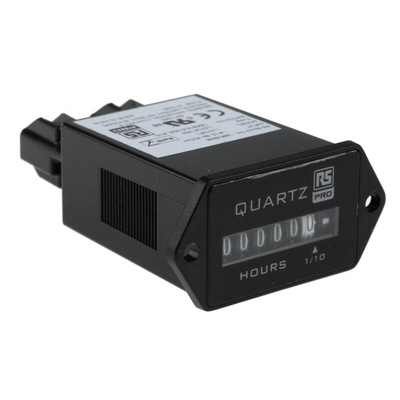

RS PRO Hour Meter Counter, 6-Digit Analogue, 50 Hz, 10 to 80 V DC

This analogue hour meter from RS PRO is a reliable way to keep track of the amount of time your machinery has been running. It's highly accurate thanks to its six-digit display and wide counting range of 0 to 99999.9 hours.


The unit is suitable for use in harsh environments as it's shock and vibration-resistant, meaning it won't be damaged by heavy-duty machinery. It also has an Ingress Protection (IP) rating of IP66, so it can withstand exposure to dust and low-pressure sprays of water.


You'll find this hour meter used in commercial settings ranging from dairies to production lines. It comes with a number of international approvals to ensure reliability.

Features and Benefits

• CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved


• Spade terminal connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.1 mm


• Cutout width of 36.8 mm


• Depth of 70.95 mm


• Digit height of 3.6 mm


• Analogue display type


• Hour meter function


• Voltage input type


• Minimum measurement of 0 h


• Maximum measurement of 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Maximum count frequency of 50 Hz, 60 Hz


• Minimum operating temperature of -40°C


• Panel mounting type


• Six digits


• No reset method


• Rectangular shape


• Supply voltage of 10 to 80 V DC


• Weight of 47 g

Dimensional Drawing

RS Pro Datasheet
