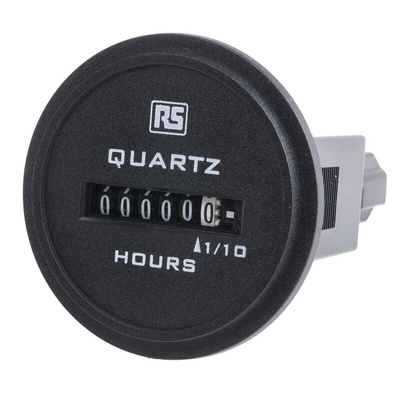

RS PRO Hour Meter Counter, 6 Digit, 50Hz, 4 → 30 V ac/dc, Счетчик часов

RS PRO Hour Meter Counter, 6-Digit Analogue, 50 Hz, 4 to 30 V AC/DC

Keep track of the amount of time your machinery has been running with this RS PRO hour meter. It counts upwards from 0 to 99999.9 hours, making it suitable for use in a range of applications.


This analogue device is highly accurate thanks to its six-digit display. It's also resistant to vibration and shock, so it won't be damaged even if it's used in harsh industrial applications. As it has an Ingress Protection (IP) rating of IP66, it's safe to use in areas where dust or low-pressure water sprays are common.


This type of product is commonly found in commercial settings such as dairies and production lines. The unit comes with international approvals to ensure reliability.

Features and Benefits

• CE (Conformité Européenne), cRUus (Underwriters' Laboratories), NEMA (National Electrical Manufacturers Association) 4X, RoHS (Restriction of Hazardous Substances) compliant, SAE (Society of Automotive Engineers) approved

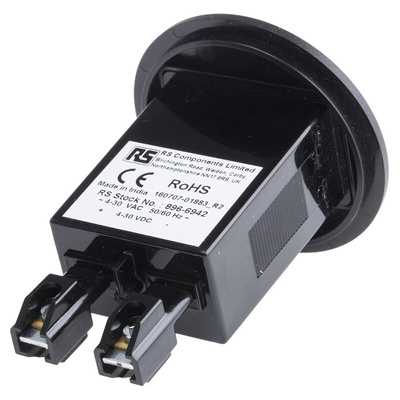

• Spade terminal connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.1 mm


• Cutout width of 50.5 mm


• Depth of 70.5 mm


• Digit height of 3.6 mm


• Analogue display type


• Hour meter function


• Voltage input type


• Minimum measurement of 0 h


• Maximum measurement of 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Maximum count frequency of 50 Hz, 60 Hz


• Minimum operating temperature of -40°C


• Panel mounting type


• Six digits


• No reset method


• Round shape


• Supply voltage of 4 to 30 V DC


• Weight of 47 g

Dimensional Drawing

RS Pro Datasheet
