RS PRO Hour Meter Counter, 6 Digit, 50Hz, 270 → 460 V ac, 90 → 264 V ac, Счетчик часов

RS PRO 6 Digit, Analogue, Counter, 50 Hz, 270 → 460 V AC, 90 → 264 V AC

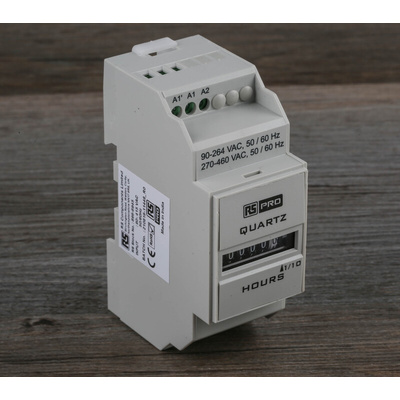

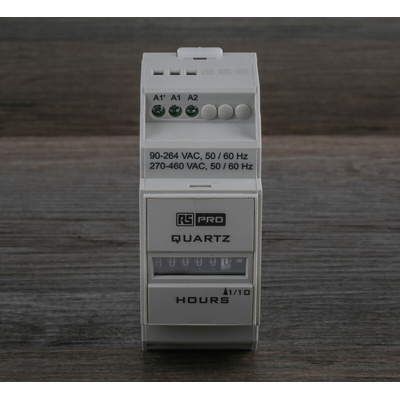

Maintain an accurate tally of how long your equipment has been working with the RS PRO six-digit analogue hour counter. These types of devices are generally found in commercial and industrial environments. The operating time is displayed in hours and tenths with running indicators.

This product is non-resettable, comes with an upwards count direction and has an automatic cycle to zero. With cut out dimensions of (H) 100 mm, (W) 45 mm and (L) 36 mm, it's compact. The counter can be mounted on a DIN (Deutsche Institut für Normung or German Institute of Standardisation) rail for easy installation, and it will function with a range of voltage supplies.

As part of our trusted RS PRO range, it's been thoroughly quality tested. The contacts are IP20 rated, so can be touched safely during installation, and the enclosure is IP40 so it's protected against tools, wires over 1 mm and dust.

Features and Benefits

• Analogue hour counter
• Spade terminal
• Electronic meter
• Measurement range of 0 to 99999.9 hours
• Maximum count frequency of 50 Hz to 60 Hz
• Minimum operating temperature of -5°C
• Supply voltage of 270 to 460 V AC and 90 to 264 V AC
• Cut out dimensions of (H) 100 mm x (W) 45 x (L) 36 mm
• Digit height of 3.6 mm
• Six digits
• No reset
• Upwards count direction (incremental)
• DIN rail mounted (Deutsche Institut für Normung or the German Institute of Standardisation)
• Voltage input
• Rectangular
• Analogue display
• Meter accuracy of ±0.02%
• RoHS compliant for minimal hazardous materials
• CE certified for health, safety and environmental protection
• Handled and packed in conditions that meet ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
