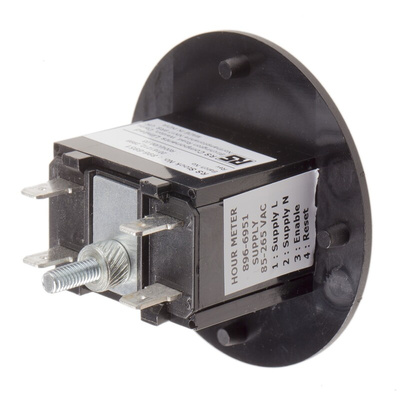

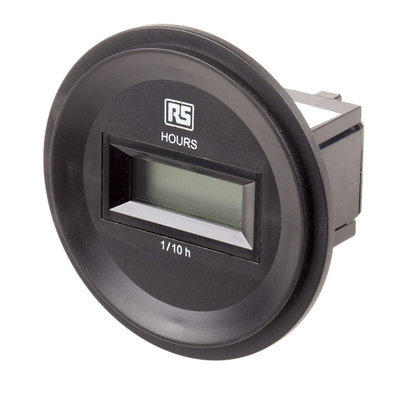

RS PRO Hour Meter Counter, 6 Digit, 50Hz, 85 → 265 V ac, Счетчик часов

RS PRO Hour Meter Counter, 6 Digit LCD, 50 Hz, 85 to 265 V AC

Monitor how long your machinery has been running with this RS PRO hour meter counter. This device is typically found in industrial venues from garages to electricity exchanges.
You can restart this hour meter from afar and save time thanks to the remote reset function. The LCD has a low power consumption, so it won't drain energy from your circuit.

Features and Benefits

• CE (Conformité Européenne), RoHS (Restriction of Hazardous Substances), (Underwriters' Laboratory) UL94V0 approvals
• Screw connection type
• Count capacity of 99999.9 h
• Count direction of up
• Count mode of hours
• Cutout height of 24.6 mm
• Cutout size of 37 x 24.6 mm
• Cutout width of 37 mm
• Depth of 42.5 mm
• Digit height of 5 mm
• LCD display type
• Hour meter function
• Voltage input type
• Maximum count frequency of 50 Hz, 60 Hz
• Maximum measurement of 99999.9 h
• Measurement range of 0 to 99999.9 h
• Meter accuracy of ±0.02%
• Electronic meter type
• Minimum measurement of 0 h
• Minimum operating temperature of -10°C
• Maximum operating temperature of +50°C
• Flush mounting, panel mounting type
• Six digits
• Remote reset method
• Round shape
• Supply voltage of 85 to 265 V AC
• Weight of 35 g

Installation Instruction Manual

RS Pro Datasheet
