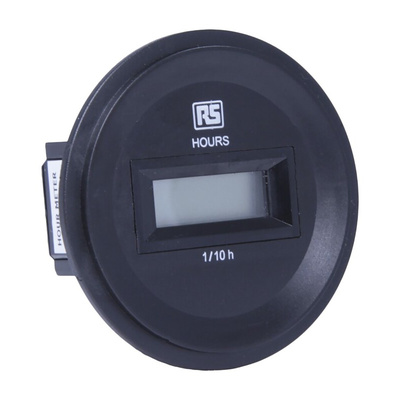

RS PRO Hour Meter Counter, 6 Digit, 50Hz, 12 → 48 V ac/dc, Счетчик часов

RS PRO Hour Meter Counter, 6-Digit LCD, 50 Hz, 12 to 48 V AC/DC

Use this hour meter from RS PRO to keep track of how long your machinery has been running. This digital device is commonly used in commercial settings, from industrial garages to electricity exchanges.


This hour meter counter has a remote reset function, meaning you can restart it at a distance to save time. The LCD (liquid crystal display) screen consumes low levels of power, so you don't have to worry about it draining energy from your circuit. The meter offers a high degree of accuracy as its display shows up to six digits.


The device counts in hours, with a wide range from 0 to 99999.99 that makes it suitable for use with a wide range of machinery. This product is Restriction of Hazardous Substances (RoHS) compliant, meaning it contains only minimal amounts of any harmful materials.

Features and Benefits

• CE (Conformité Européenne), RoHS (Restriction of Hazardous Substances), (Underwriters' Laboratory) UL94V0 approvals


• Screw connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.6 mm


• Cutout size of 37 x 24.6 mm


• Cutout width of 37 mm


• Depth of 42.5 mm


• Digit height of 5 mm


• LCD display type


• Hour meter function


• Voltage input type


• Maximum count frequency of 50 Hz, 60 Hz


• Measurement range of 0 to 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Minimum operating temperature of -10°C


• Maximum operating temperature of +50°C


• Flush mounting, panel mounting type


• Six digits


• Remote reset method


• Round shape


• Supply voltage of 12 to 48 V AC/DC


• Weight of 35 g
