RS PRO Hour Meter Counter, 6 Digit, 10 → 80 V dc, Счетчик часов

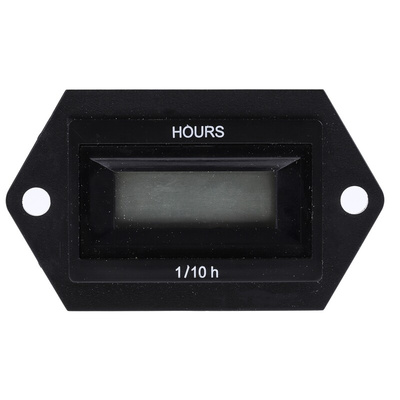

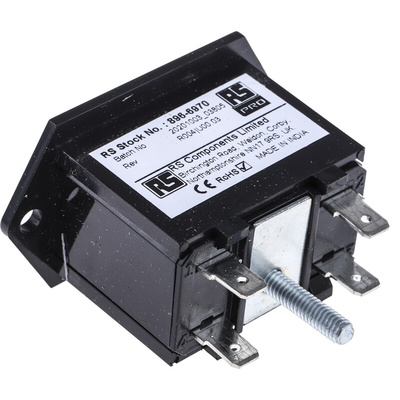

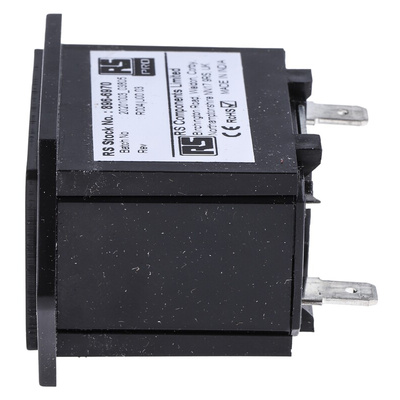

RS PRO Hour Meter Counter, 6-Digit LCD, 10 to 80 V DC

Use this hour meter from the RS PRO range to keep track of how long your machinery has been running. It's a convenient choice thanks to its remote reset function, which lets you restart it from a distance.


The LCD (liquid crystal display) is energy-efficient as it consumes little power. It shows up to six digits at once for a high degree of accuracy. It can measure from 0 to 99999.9 hours, making it suitable for use in a range of applications. It's commonly found in industrial settings such as electricity exchanges and garages.

Features and Benefits

• CE (Conformité Européenne), RoHS (Restriction of Hazardous Substances), (Underwriters' Laboratory) UL94V0 approvals


• Screw connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 24.6 mm


• Cutout size of 37 x 24.6 mm


• Cutout width of 37 mm


• Depth of 36.5 mm


• Digit height of 5 mm


• LCD display type


• Hour meter function


• Voltage input type


• Maximum count frequency of 50 Hz, 60 Hz


• Measurement range of 0 to 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Minimum operating temperature of -10°C


• Maximum operating temperature of +50°C


• Flush mounting, panel mounting type


• Six digits


• Remote reset method


• Rectangular shape


• Supply voltage of 10 to 80 V DC


• Weight of 31 g
