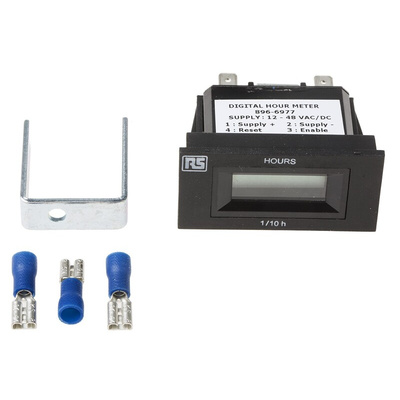

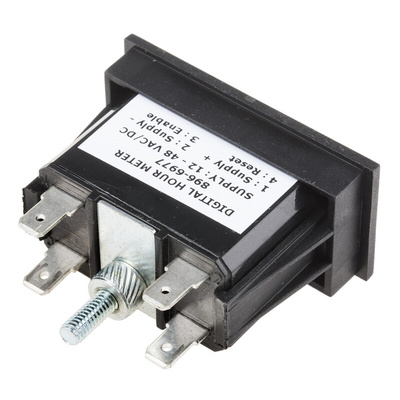

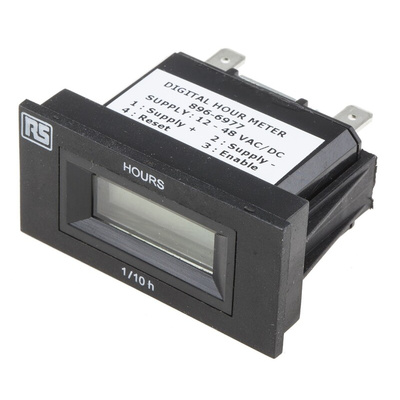

RS PRO Hour Meter Counter, 6 Digit, 50Hz, 12 → 48 V ac/dc, Счетчик часов

RS PRO Hour Meter Counter, 6-Digit LCD, 50 Hz, 12 to 48 V AC/DC

This hour meter from RS PRO is a convenient way to check the amount of time your machinery has been running. The LCD (liquid crystal display) consumes little power, so it's an energy-efficient option that won't drain power from your circuit.


The hour meter counter has a remote reset function, so you can quickly restart it at a distance. Its display shows up to six digits, ensuring highly accurate readings across a broad range from 0 to 99999.9 hours.


This product is Restriction of Hazardous Substances (RoHS) compliant, so you can rest assured that it contains only minimal amounts of any harmful materials. You'll find this type of product used in industrial environments such as electricity exchanges and garages.

Features and Benefits

• CE (Conformité Européenne), RoHS (Restriction of Hazardous Substances), (Underwriters' Laboratory) UL94V0 approvals


• Screw connection type


• Count capacity of 99999.9 h


• Count direction of up


• Count mode of hours


• Cutout height of 23 mm


• Cutout size of 45.5 x 23 mm


• Cutout width of 45.5 mm


• Depth of 36.5 mm


• Digit height of 5 mm


• LCD display type


• Hour meter function


• Voltage input type


• Maximum count frequency of 50 Hz, 60 Hz


• Measurement range of 0 to 99999.9 h


• Meter accuracy of ±0.02%


• Electronic meter type


• Minimum operating temperature of -10°C


• Maximum operating temperature of +50°C


• Flush mounting, panel mounting type


• Six digits


• Remote reset method


• Rectangular shape


• Supply voltage of 12 to 48 V AC/DC


• Weight of 29 g
