RS PRO Counter, Digital Hour Meter Counter, 7 Digit, 40Hz, 85 → 265 V ac/dc, Счетчик

RS PRO, 7 Digit, LCD, Digital Counter, 40 Hz, 85 → 265 V ac/dc

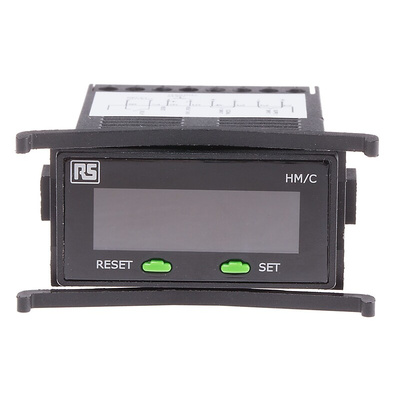

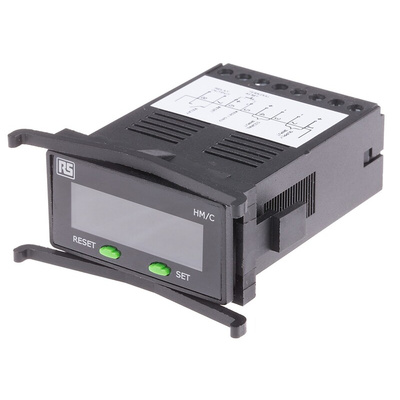

This 7-digit LCD (liquid crystal display) digital counter from the RS PRO range is specially designed to track and record time. Digital counters like these may also be referred to as hour meters.

Hour meters are typically used to measure the runtime of devices or machines for maintenance purposes. For example, an hour meter may be connected to an industrial engine to check the running conditions, schedule repairs or calculate when it’s time to change the oil.

As well as counting time, you can use this counter to tally a range of digital events. It has a clear 7-digit LED (light-emitting diode) display, green backlighting and two menu keys on the front panel for ease of use.

This digital counter is compact, robust and fitted with a simple panel mount so just about anyone can install it.

Features and Benefits

• Supply voltage of 85 V to 265 V ac/dc
• Counts in hours, minutes and seconds (incremental only)
• Voltage input type
• Terminal connection type
• Automatic and manual reset methods
• Relay output
• Electronic meter type
• Minimum operating temperature of -5°C
• Maximum operating temperature of +55°C
• 44.8 x 22 mm
• Flush mount and panel mount type
• Maximum count frequency of 40Hz
• 1(s) to 9999999(h) counter range
• CE, RoHS and UL94V0 approved

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Installation Instruction Manual

RS Pro manual DIGITAL HOUR METER & COUNTER

RS PRO Datasheet
