RS PRO Impulse Counter Counter, 6 Digit, 30Hz, 10 → 80 V dc, Счетчик

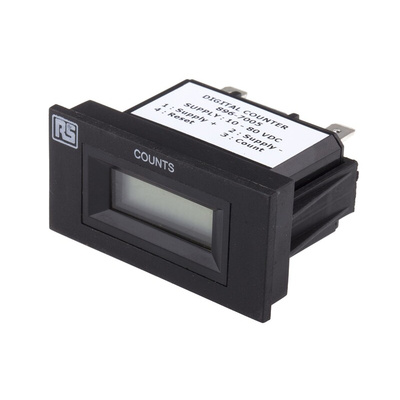

RS PRO Impulse Counter, 6 Digit LCD, 30 Hz, 10 to 80 V DC

Whether it's a revolution, stroke or length, you can accurately record how many times an event has occurred with this RS PRO impulse counter. The LCD component is typically used in industrial settings from engineering facilities to production lines and power plants.
You can remotely reset the six-digit electronic counter, which saves you time and energy. For easy installation, you'll be able to flush or panel mount this lightweight component securely into place. It uses low levels of power, so there's no need to worry it will place undue strain on your electrical circuit.

Features and Benefits

• RoHS (Restriction of Hazardous Substances) approved
• Terminal connection type
• Pulse count mode
• Cutout height of 24 mm
• Cutout size of 48 x 24 mm
• Cutout width of 48 mm
• Depth of 36.5 mm
• LCD display type
• Impulse counter function
• Voltage input type
• Maximum count frequency of 30 Hz
• Minimum operating temperature of -10°C
• Maximum operating temperature +50°C
• Measurement range of 999999
• Electronic meter type
• Flush mounting and panel mounting type
• Six digits
• Electrical reset method
• Supply voltage of 10 to 80 V DC
• Weight of 29 g

Installation Instruction Manual

RS Pro Datasheet
