RS PRO Impulse Counter Counter, 6 Digit, 10Hz, 230 V ac, Счетчик

RS PRO 6 Digit, Counter, 10 Hz, 230 V AC

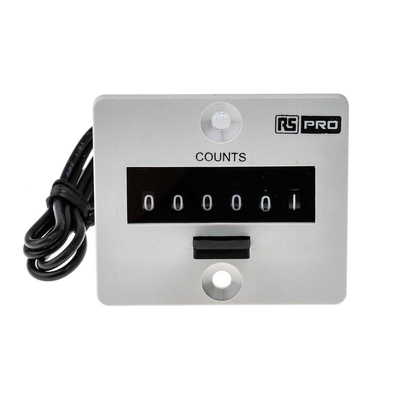

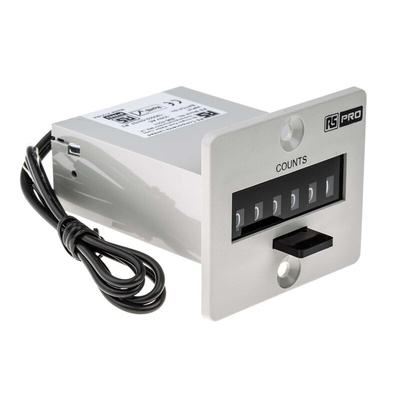

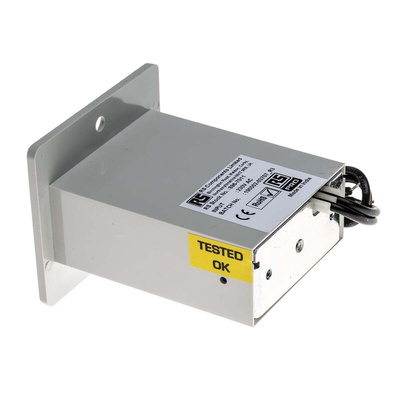

Whatever your tallying requirements, this 6-digit electromechanical impulse counter from RS PRO will deliver you the figures you need accurately and consistently.

Digital counters have been around for decades, and are commonly used in a range of applications that need to measure frequency and time – from digital clocks to frequency counters and electronic device timers. Modern models use more advanced programming techniques to enable tallying of virtually any digital or circuit-based event.

This electronic counter displays figures to a maximum of 6 digits in a digital display. Resetting is done manually with the push of a button. This compact machine has a robust construction that's IP30-rated for protection against foreign tools up to 2.5 mm.

A handy panel mounting option offers space-saving benefits as well as easy installation. It can also be base or bail mounted if you prefer.

Features and Benefits

• Impulse counter
• Electronic meter
• Digital display type
• Supply voltage of 230 V AC
• Pulse count mode
• Voltage input type
• Six digits (digit height of 4 mm)

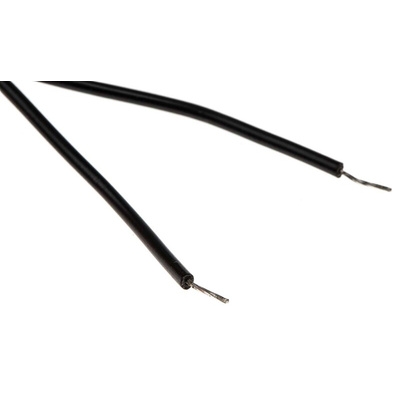

• Terminal strip connection type
• Manual reset method
• Panel mounting
• Maximum count frequency of 10 Hz
• Measurement range of 0 to 999999
• Depth of 63.2 mm
• Cutout size 50.8 mm x 25.7 mm
• Minimum operating temperature of -5°C
• Maximum operating temperature of +50°C
• CE and RoHS (Restriction of Hazardous Substances) approved

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Dimensional Drawing

RS PRO Datasheet
